POWER & CONTROL / ACCESSORIES
From cabinet power to sensing, remote operation and application controls. A dedicated collection for specifying the supporting components.
References for solderless lighting projects—not a promise of universal compatibility or included accessories.
01 / POWER SUPPLIES
02 / REMOTE CONTROL
03 / SENSING01 / FIND YOUR CATEGORY
24 family / function entries, not a final SKU count.
Start with space, output voltage and power.
Motion, touch, hand-wave and door-control families.
Match transmitters, receivers and control protocols.
Voice, bed, partition and presence-sensing options.
02 / EXPLORE THE COLLECTION
Showing 24 family / function entries
All 24 entries include images: 19 AI-cleaned references and 5 original photos with local text removal and gentle sharpening, without generative redrawing. Images illustrate appearance, not recovered technical detail.

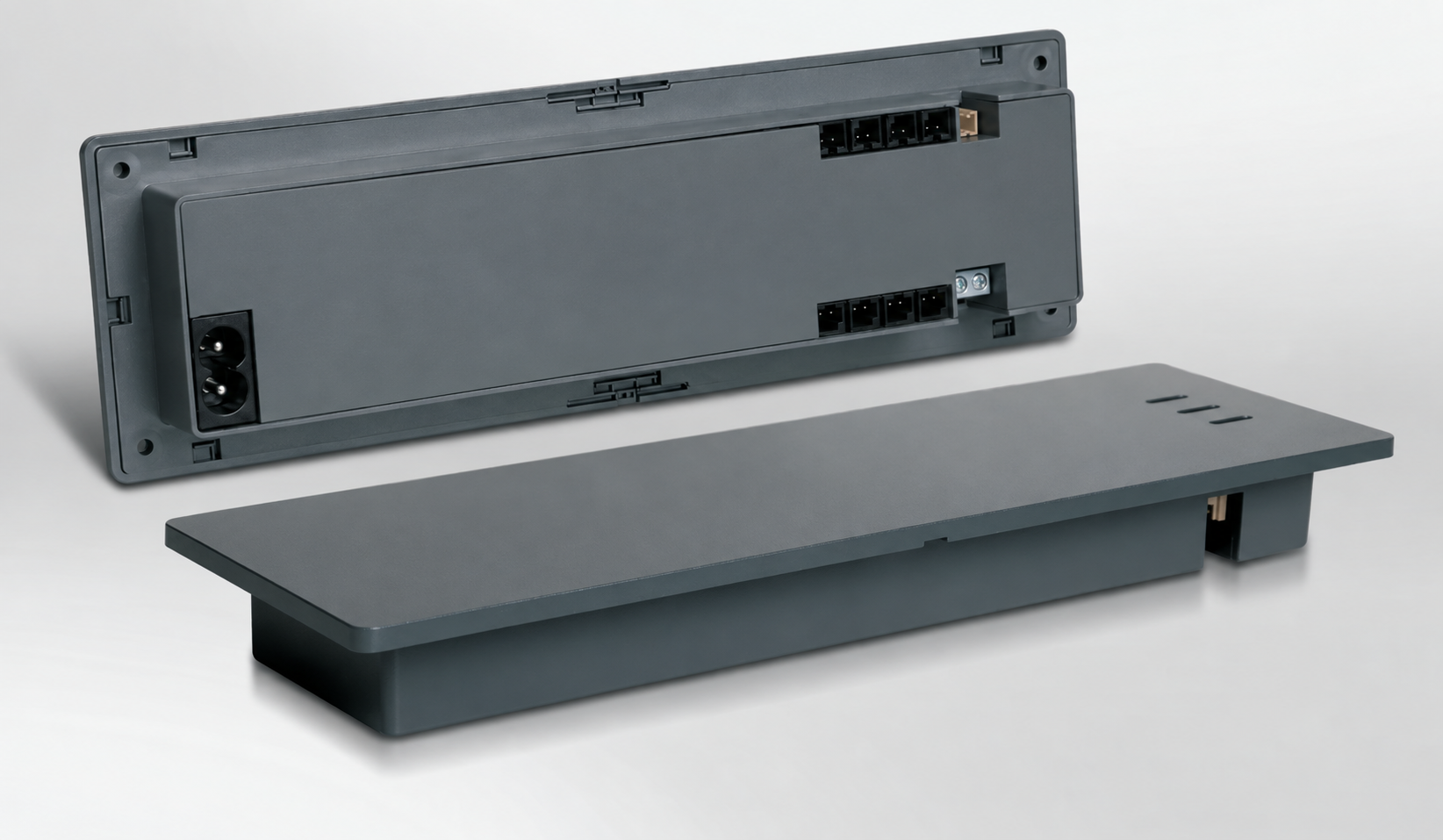

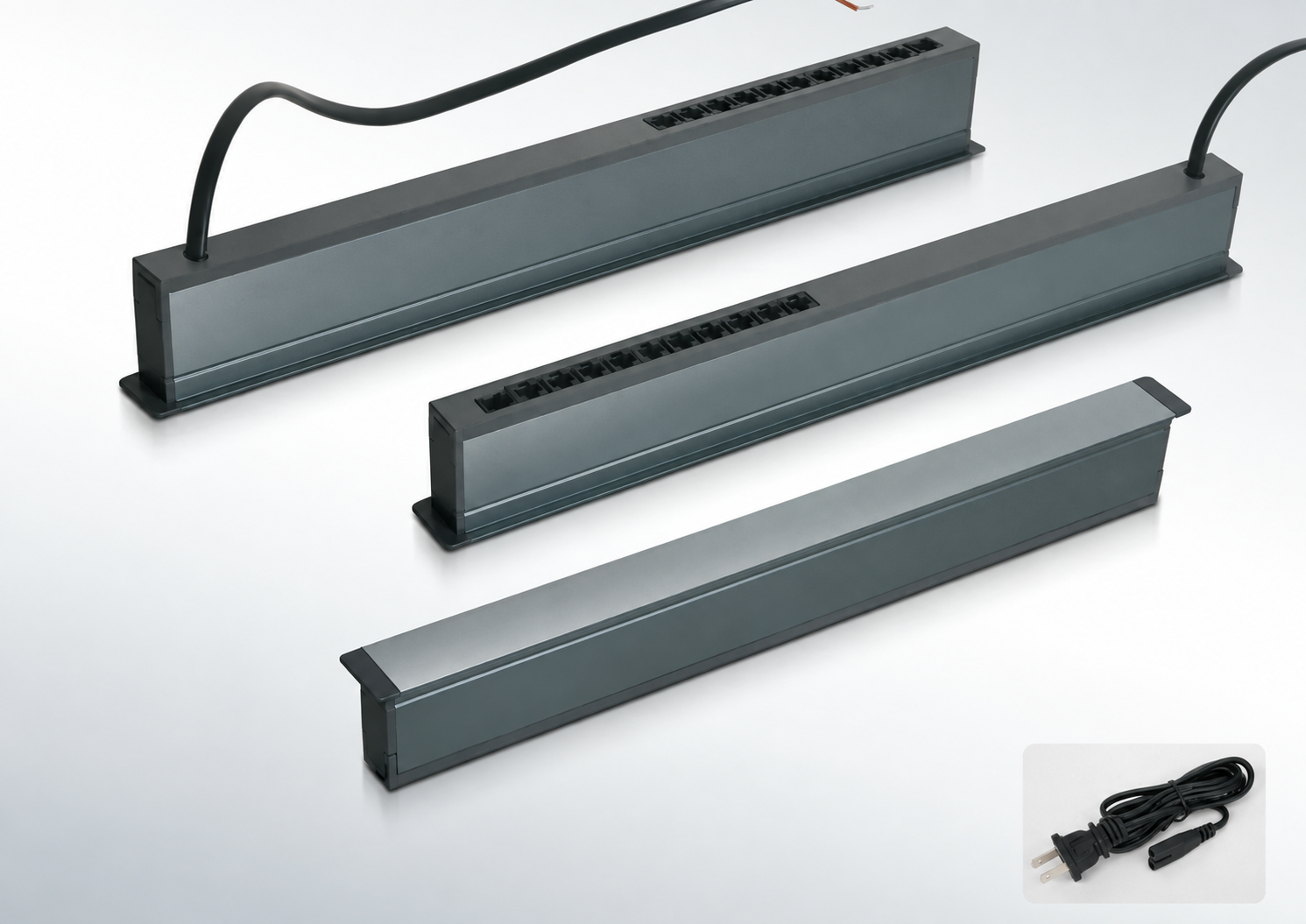

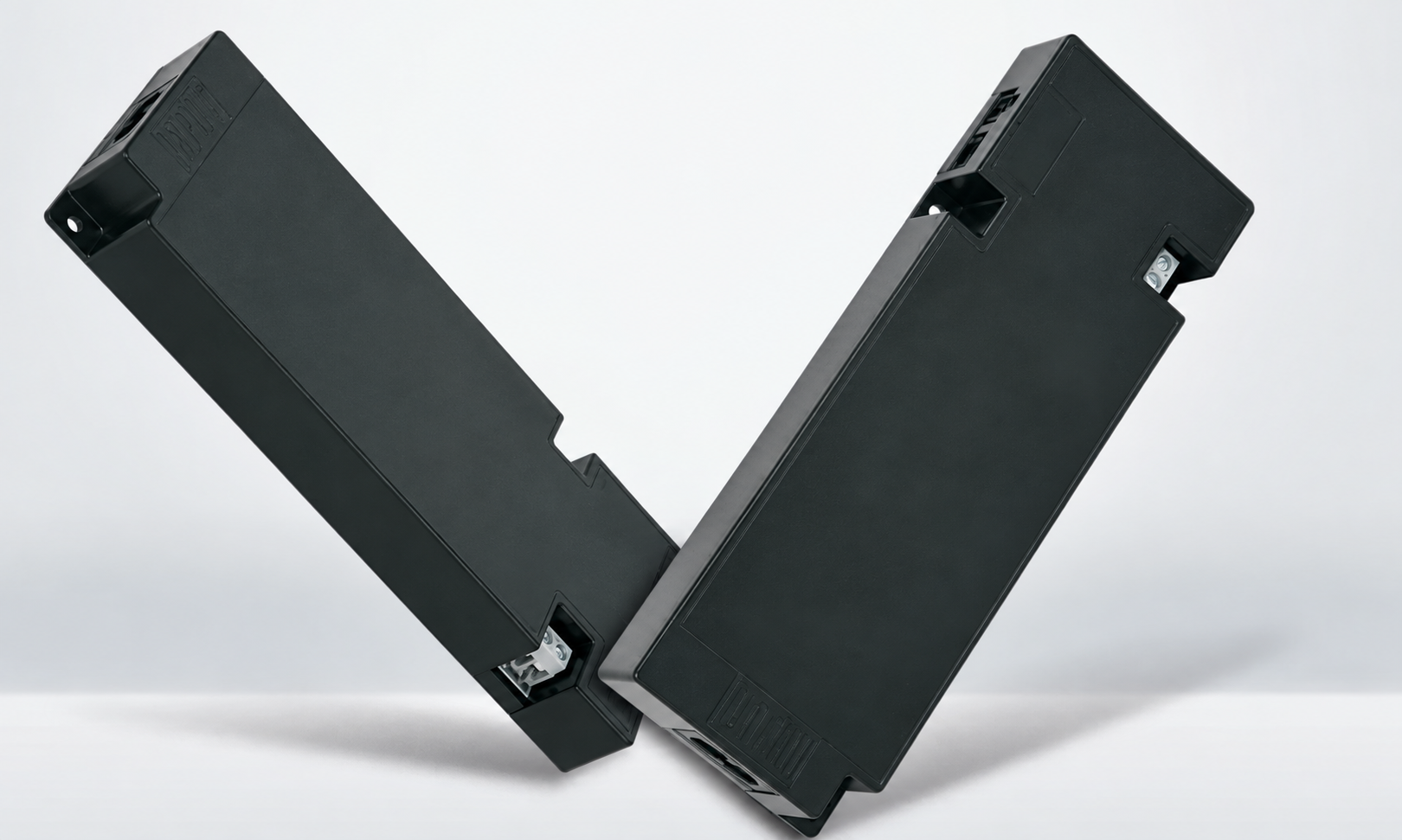

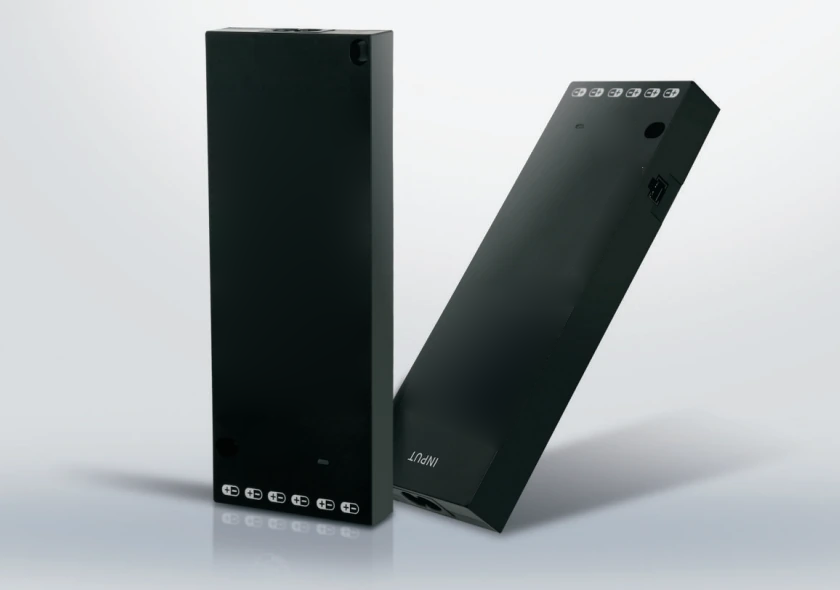

Enlarge ↗12V · 36 / 60 / 100W
Check cabinet clearance and cable orientation for the slim housing.

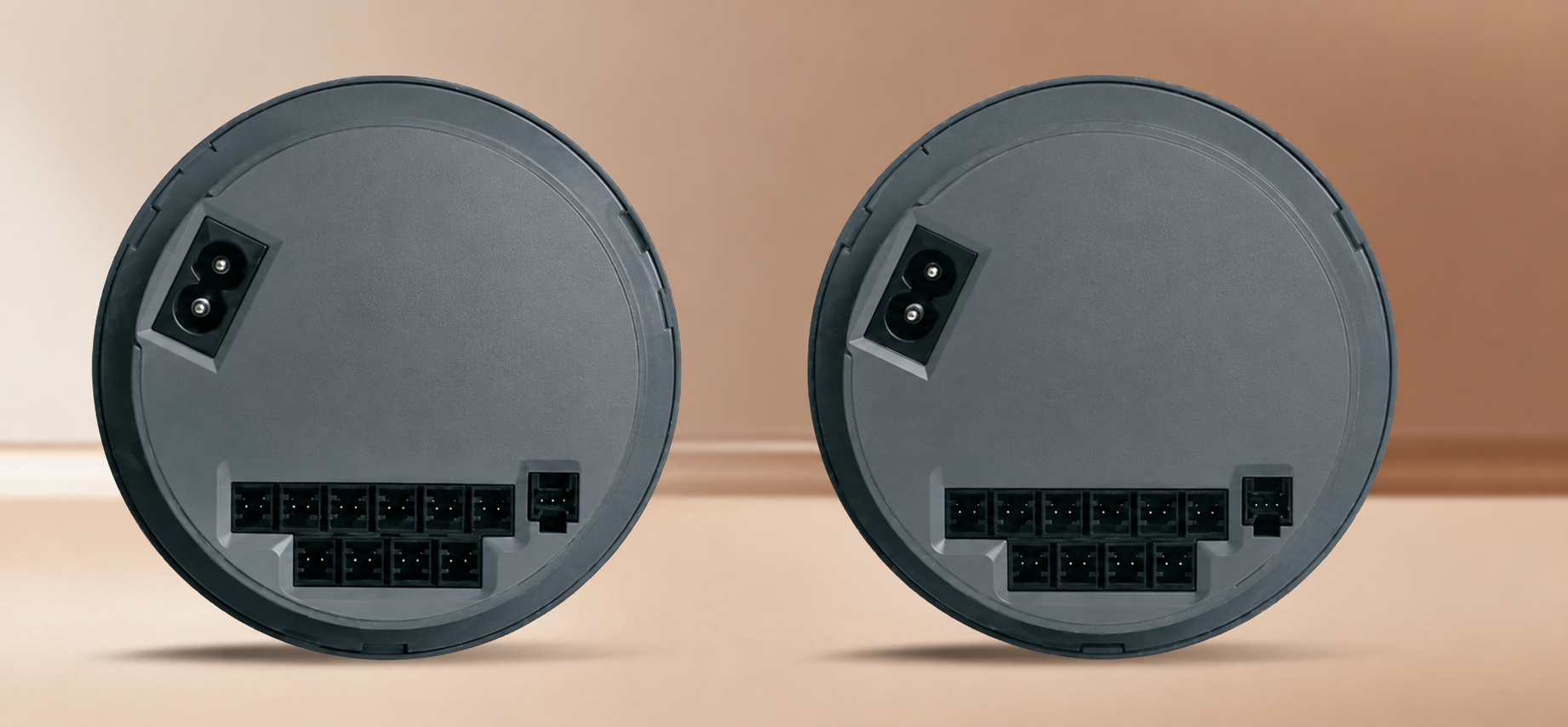

Enlarge ↗60 / 100W · Output voltage to verify
FD24 model names conflict with the voltage table. Do not specify as 24V yet.

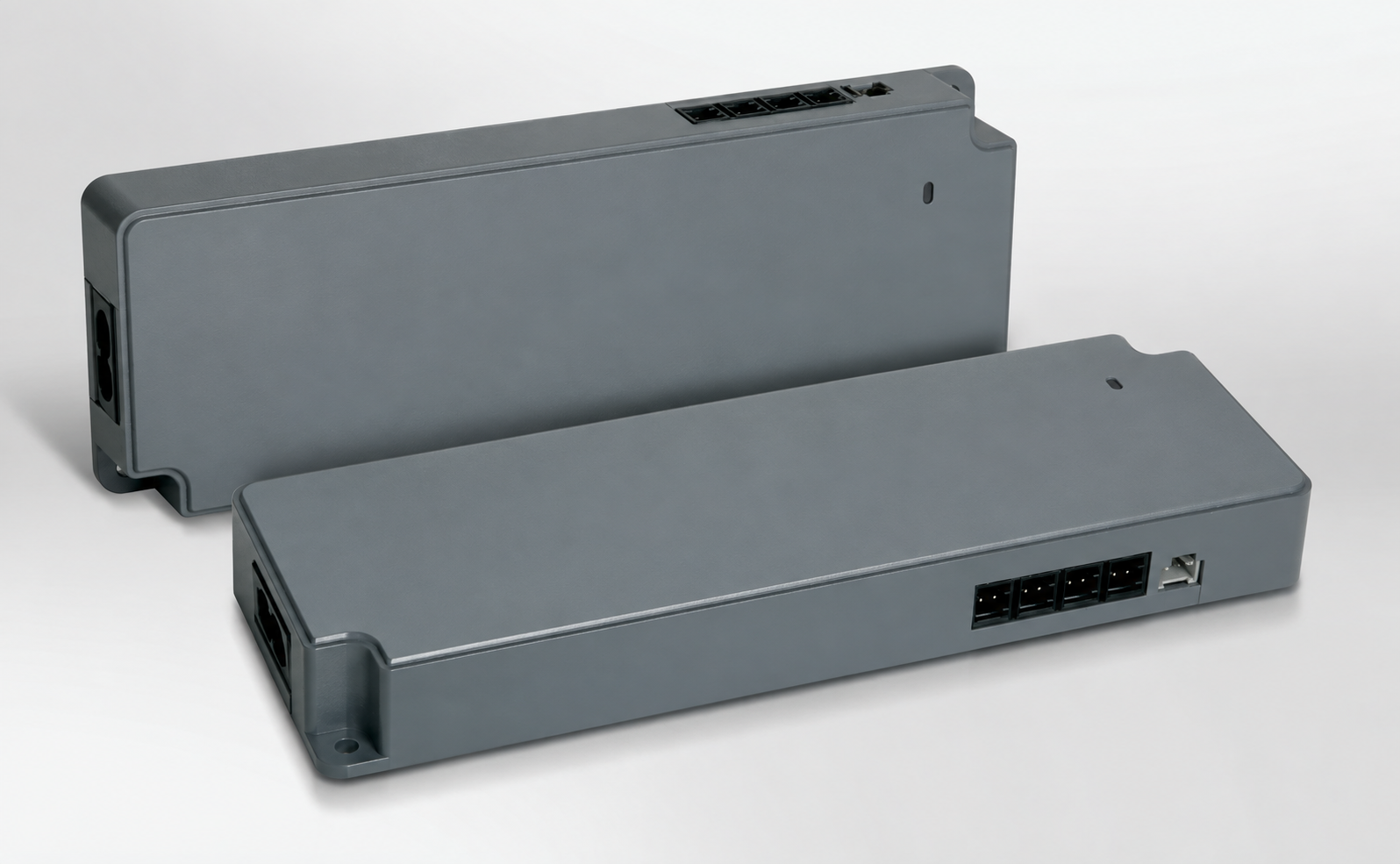

Enlarge ↗12V · 60 / 100 / 150 / 200W
Multiple power ratings with model-dependent housing dimensions.
Enlarge ↗12V · 150 / 200W
For higher-load project discussions; verify total load and thermal conditions.

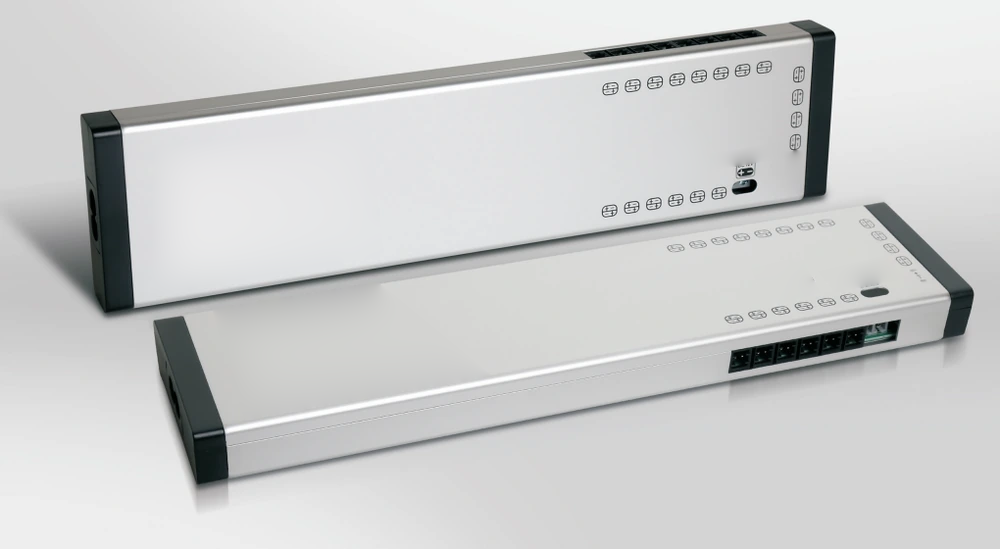

Enlarge ↗12V · 24 / 36 / 60 / 100W
Verify control and output connector layouts for the exact model.

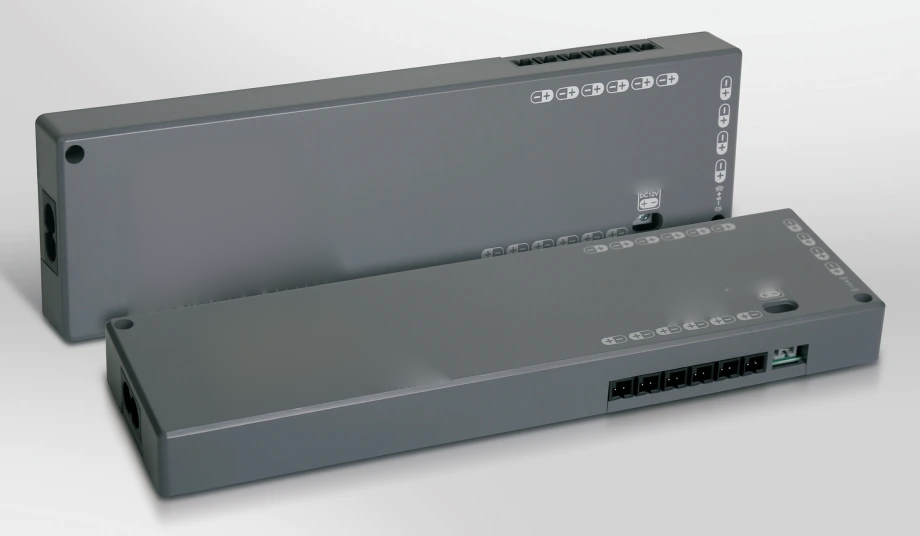

Enlarge ↗12V · 24 / 36 / 60 / 100W
Confirm central/individual control and connector assignments with the sensors.
Enlarge ↗12V / 24V versions · 24–100W
Voltage ratings describe separate versions, not an automatically switching output.
Enlarge ↗12V / 24V versions · 24–100W
Specify voltage, load, connectors and installation dimensions separately.

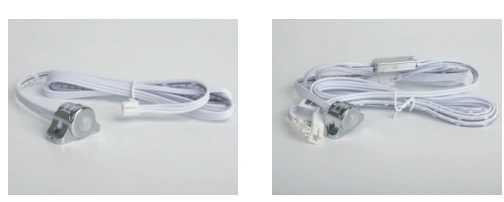

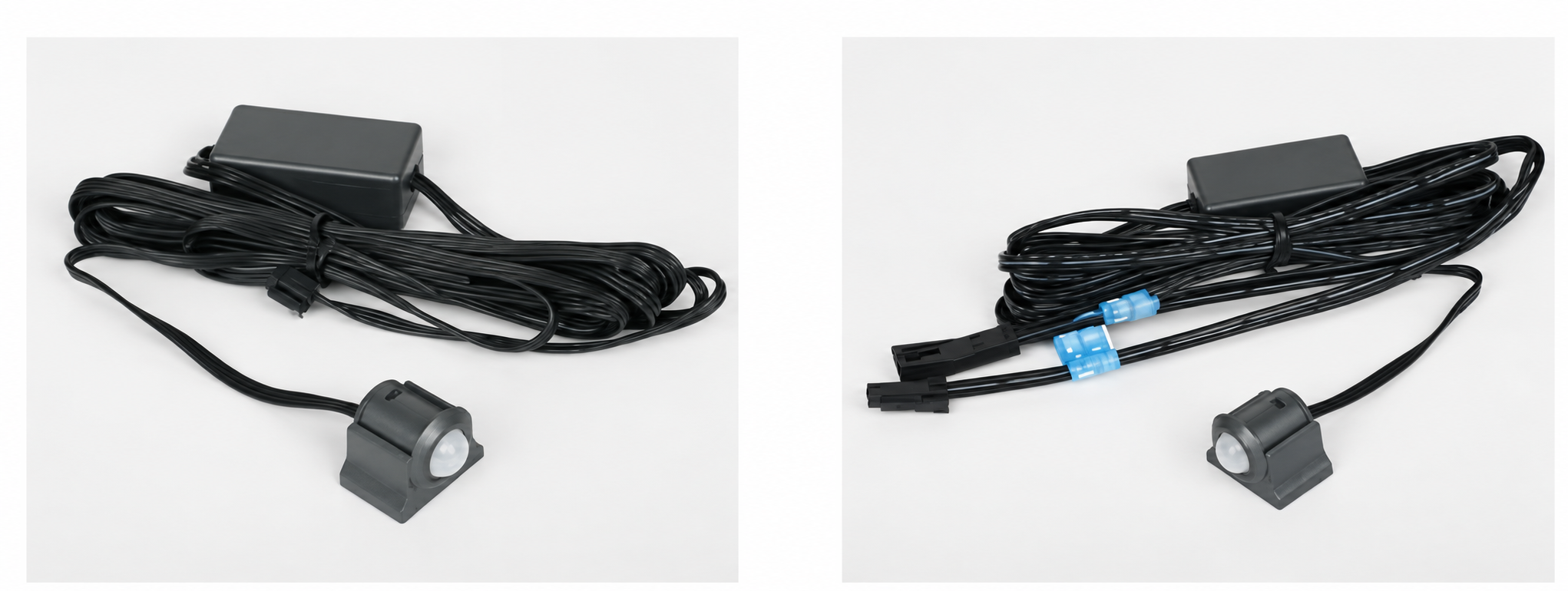

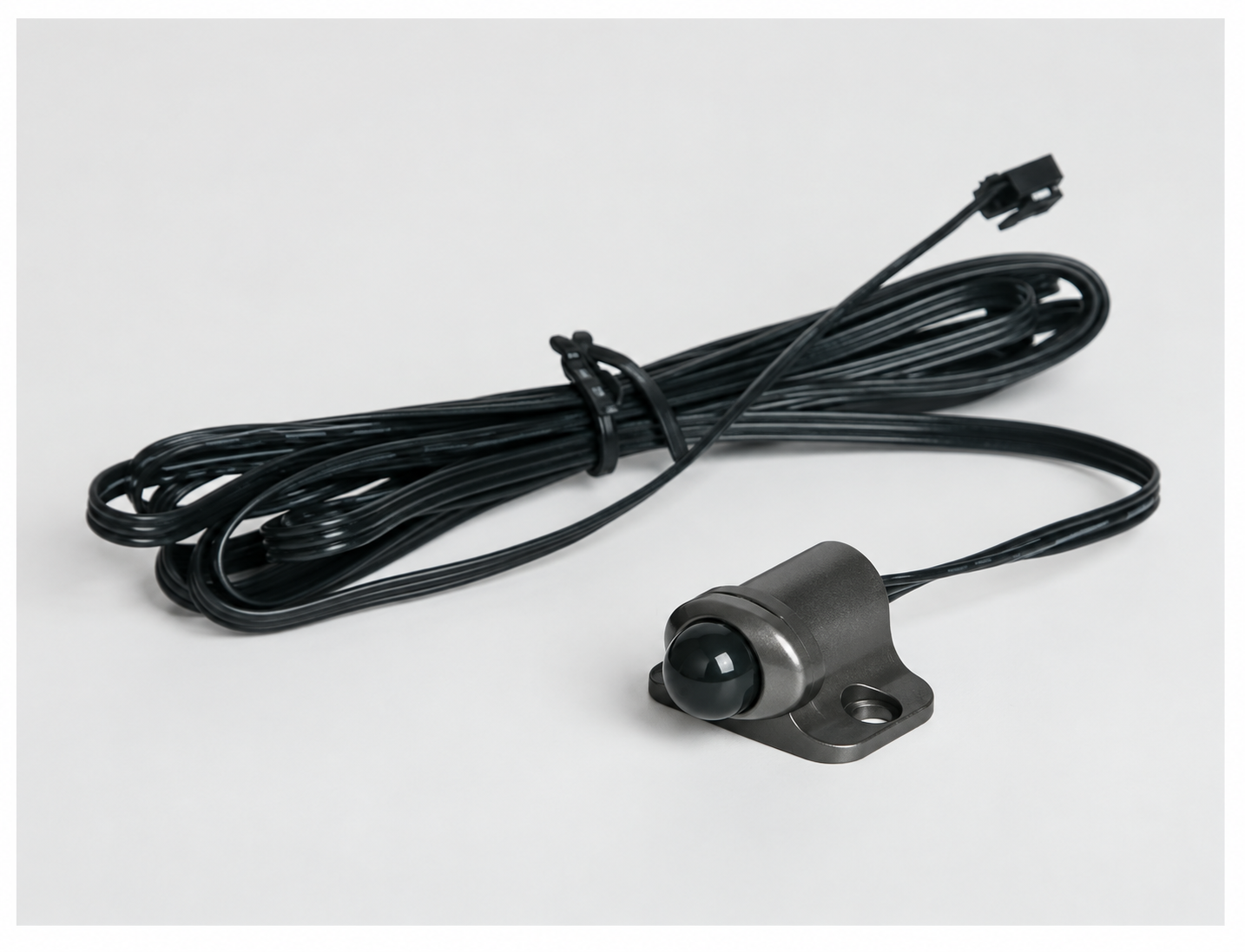

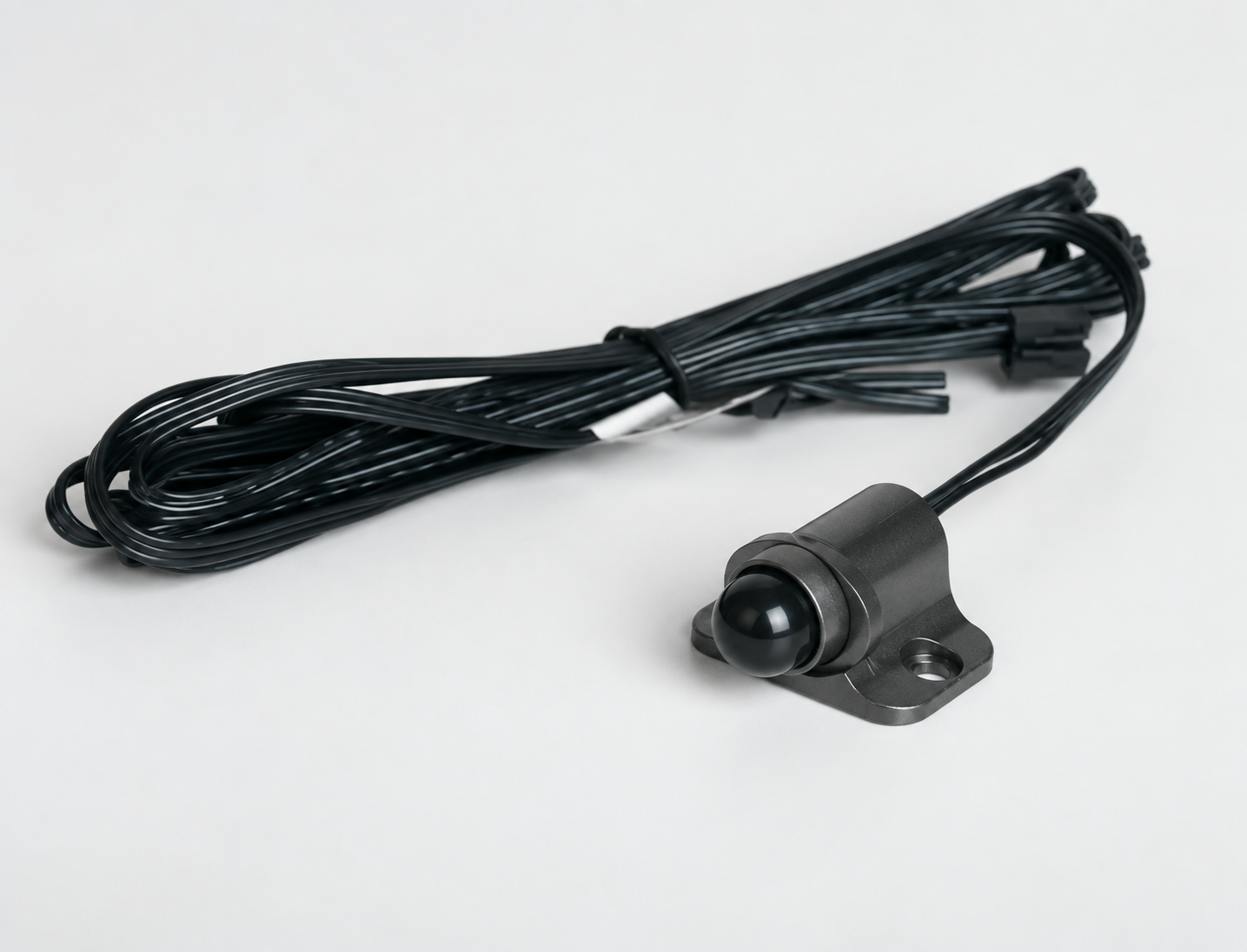

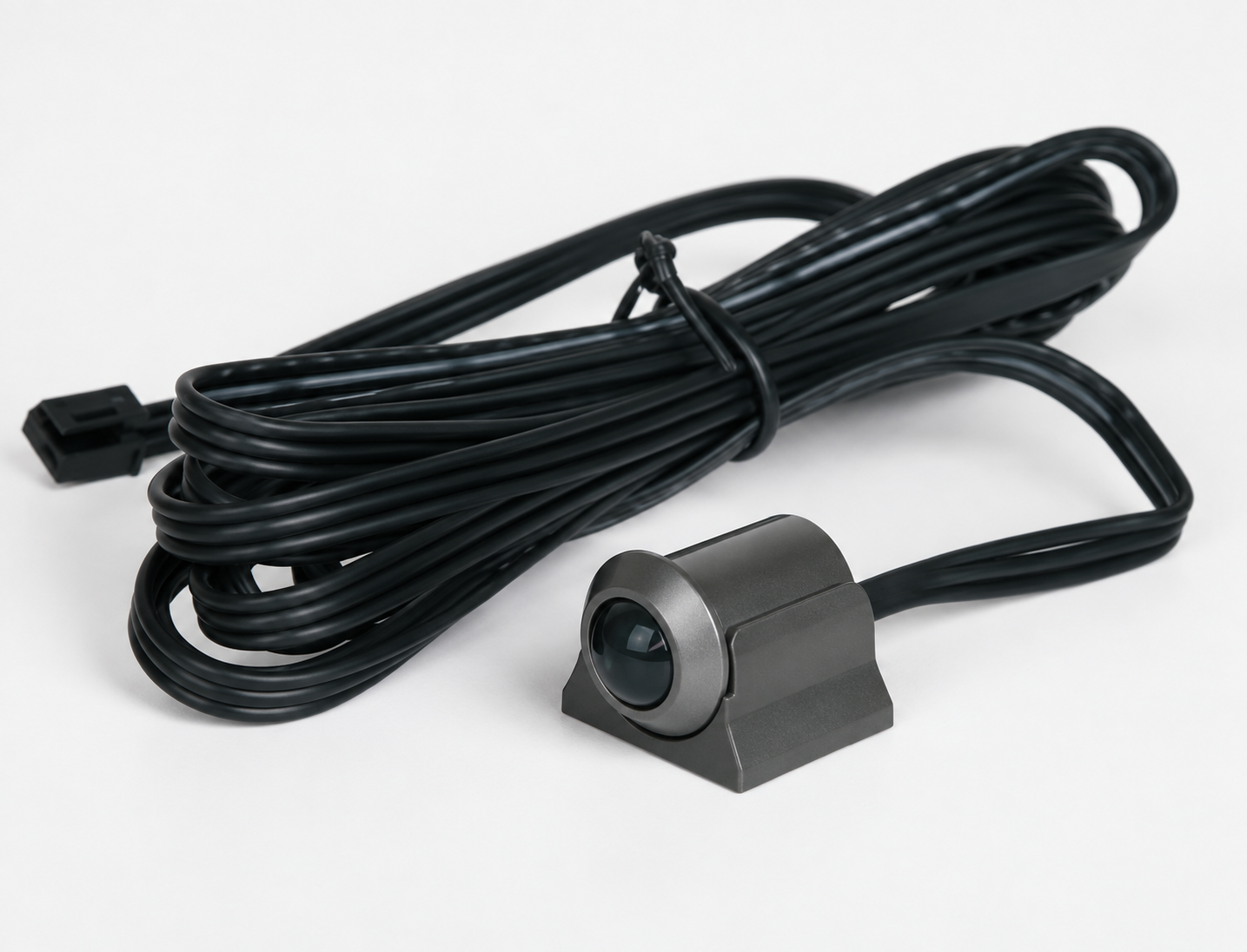

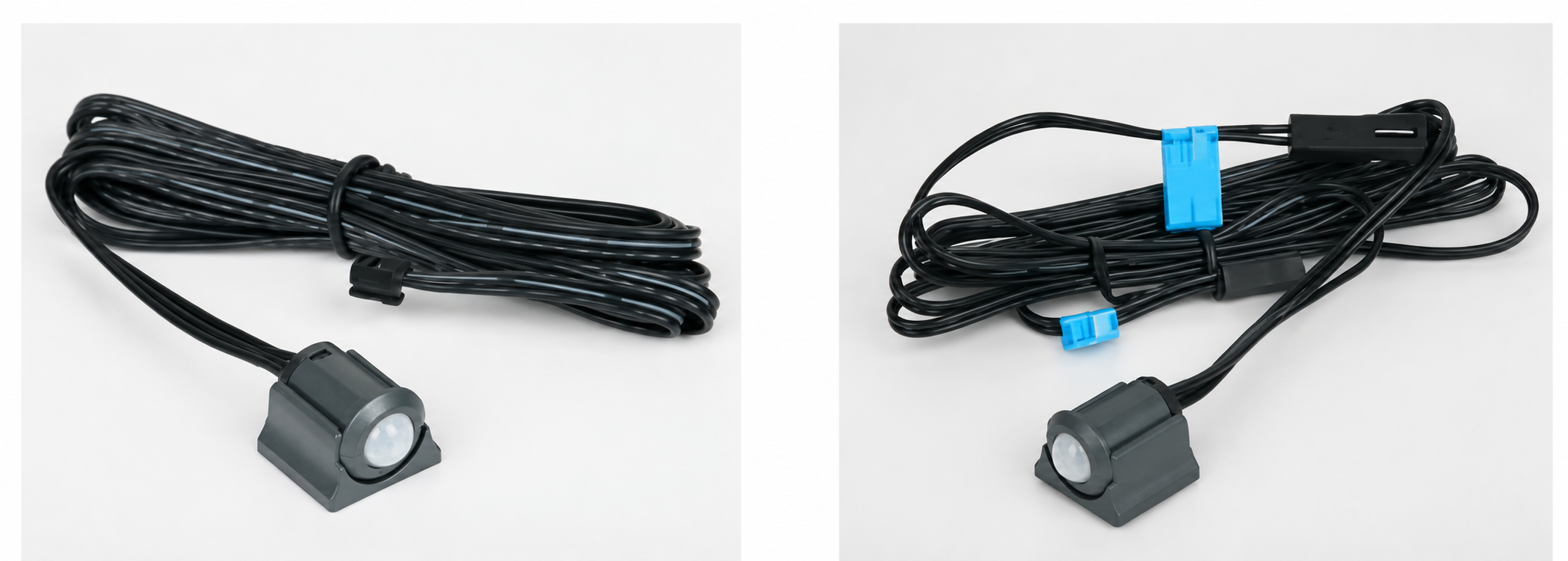

Enlarge ↗Select sensing function and control version
A representative family image. Sensor function, cutout and connectors vary by model; compatibility is not universal.
Enlarge ↗Select sensing function and control version
A representative family image. Sensor function, cutout and connectors vary by model; compatibility is not universal.
Enlarge ↗Select sensing function and control version
A representative family image. Sensor function, cutout and connectors vary by model; compatibility is not universal.
Enlarge ↗Select sensing function and control version
A representative family image. Sensor function, cutout and connectors vary by model; compatibility is not universal.
Enlarge ↗Select sensing function and control version
A representative family image. Sensor function, cutout and connectors vary by model; compatibility is not universal.
Enlarge ↗Select sensing function and control version
A representative family image. Sensor function, cutout and connectors vary by model; compatibility is not universal.
Enlarge ↗Select sensing function and control version
A representative family image. Sensor function, cutout and connectors vary by model; compatibility is not universal.

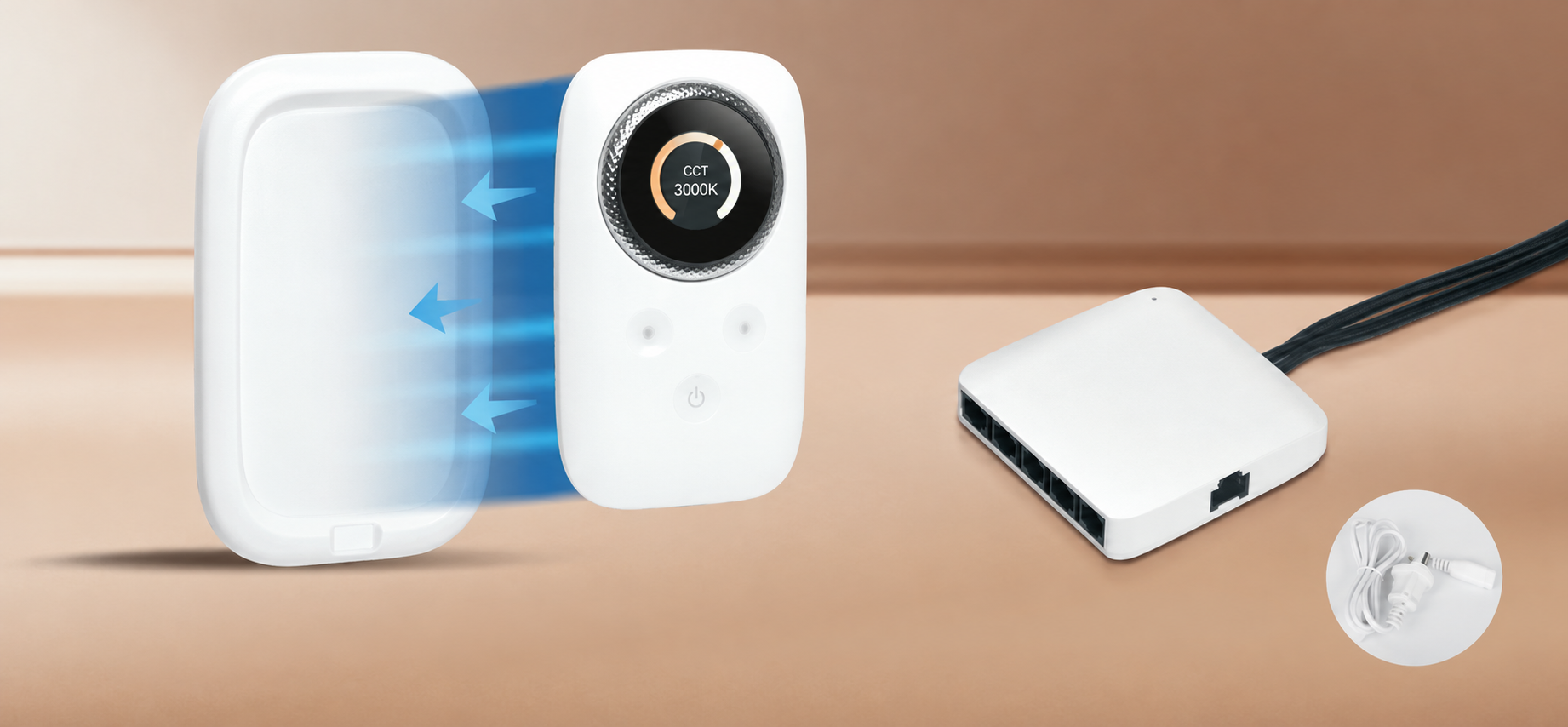

Enlarge ↗Display / rotary · Dimming and CCT reference
Match the remote, receiver and strip dimming method as a system.

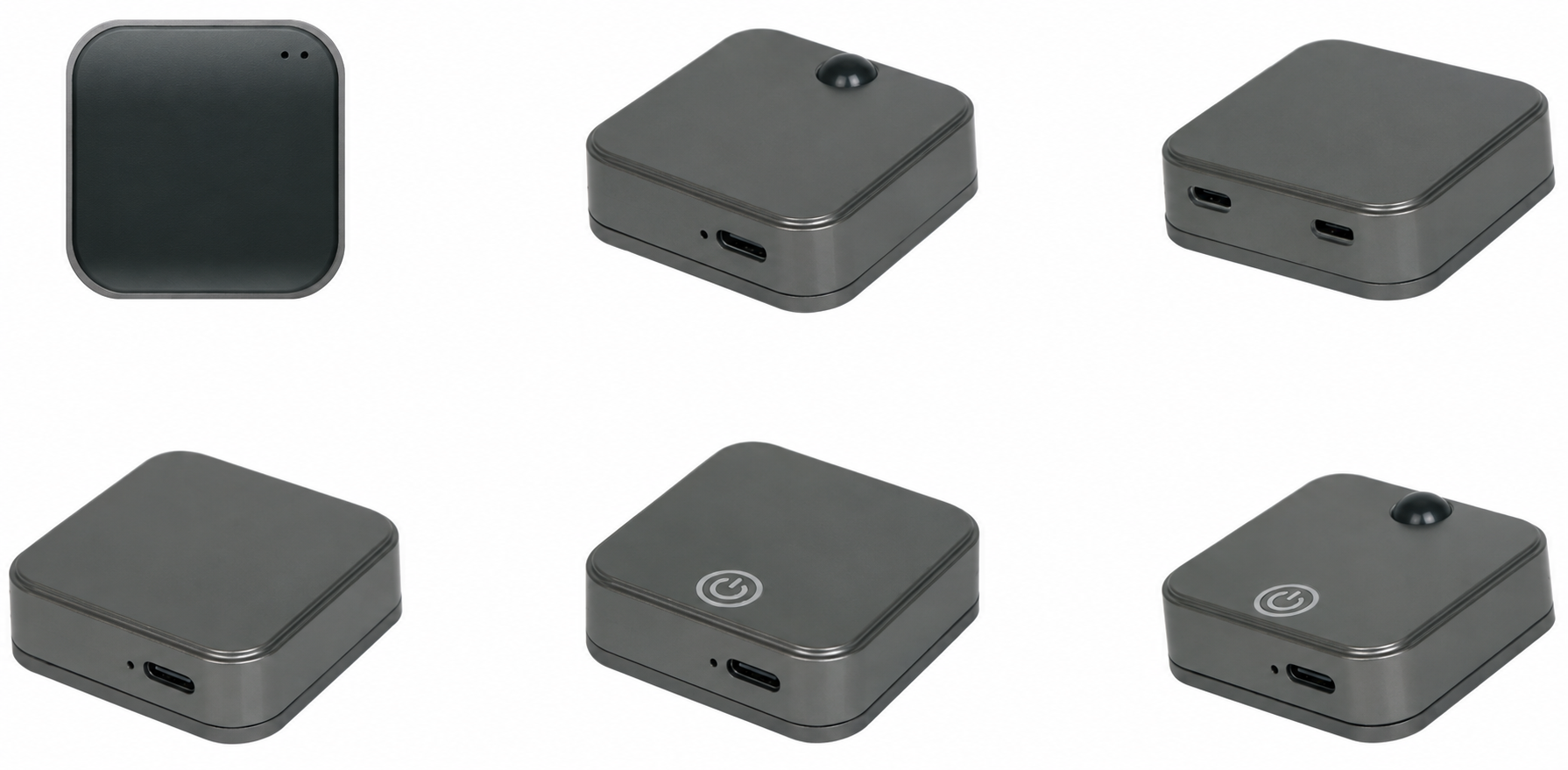

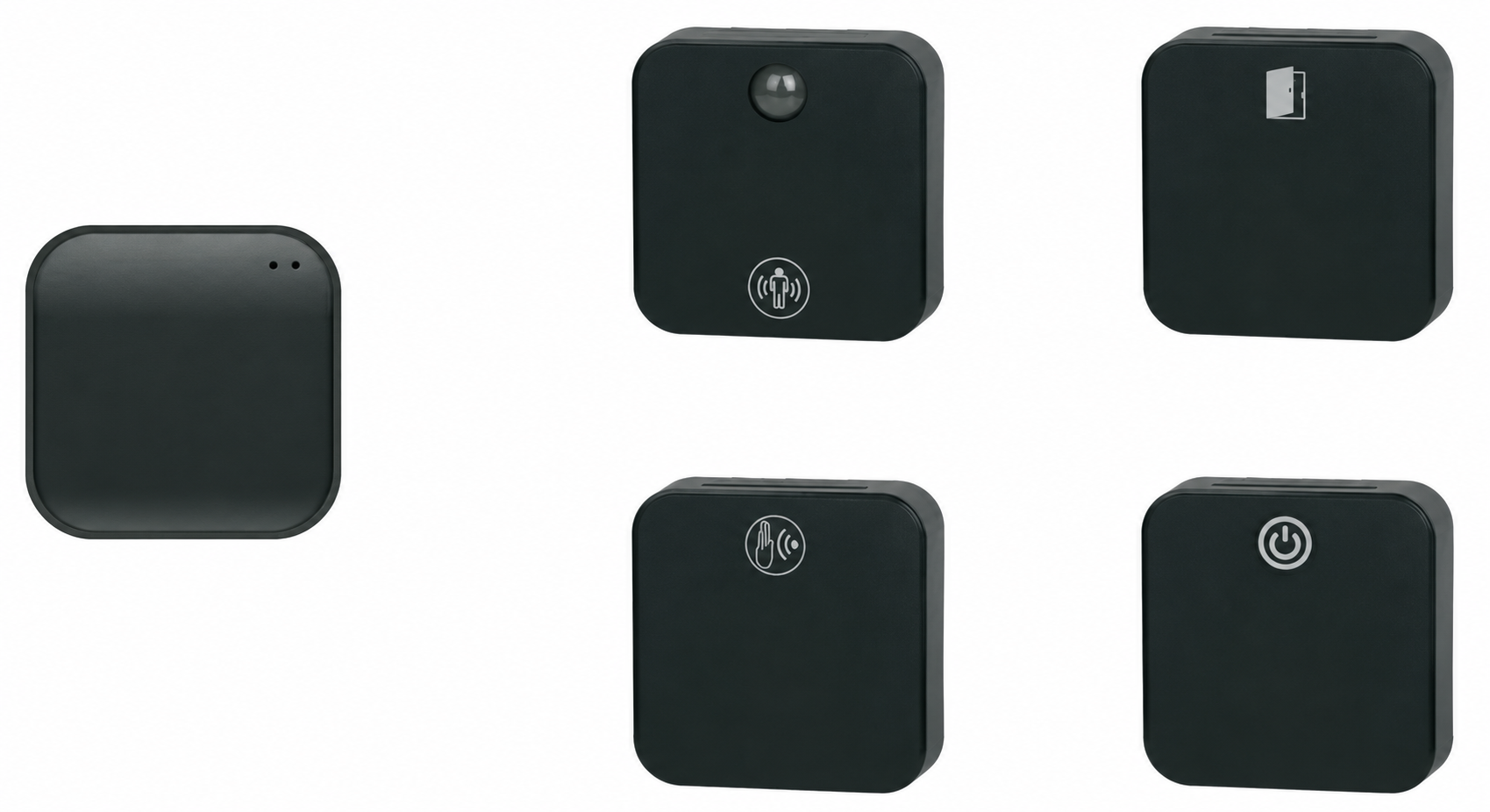

Enlarge ↗Wireless sensors + matched receiver
Wireless does not mean interchangeable. Do not mix receivers from other RF families.

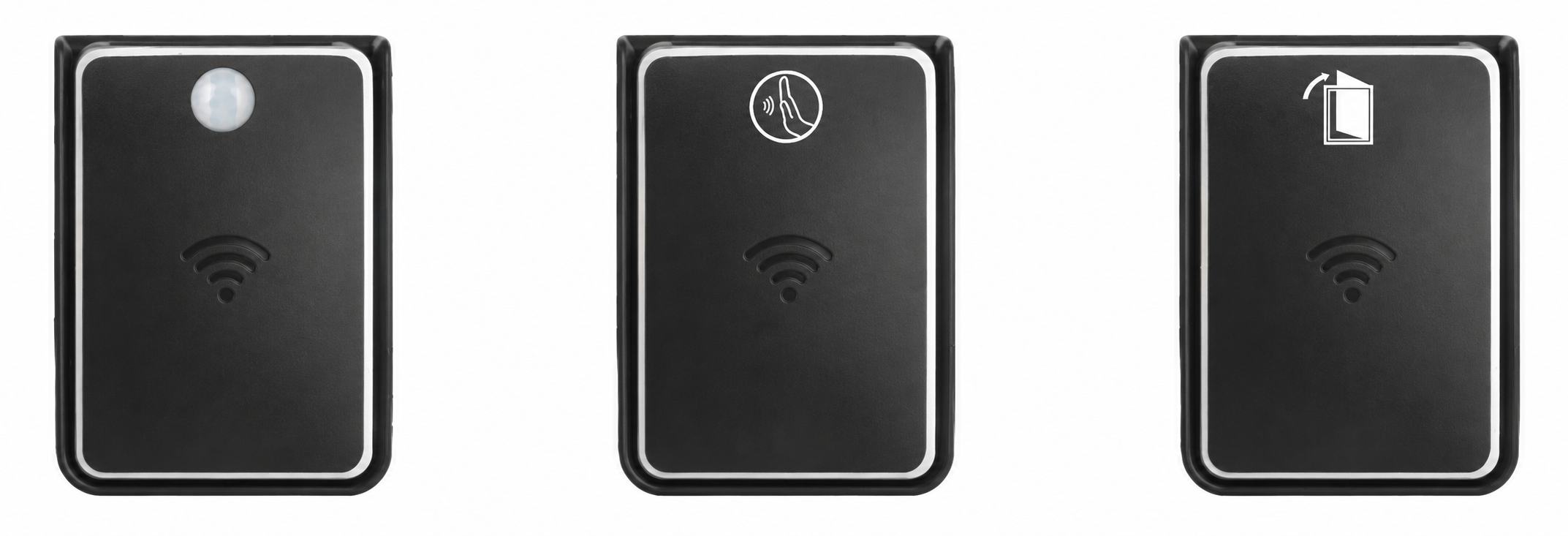

Enlarge ↗Motion / hand-wave / door / touch references
The source alternates between 433MHz and 443MHz. Frequency and pairing need confirmation.
Enlarge ↗Alternative wireless sensor housing family
The heading says 433MHz; body text says 443MHz. No frequency is confirmed.

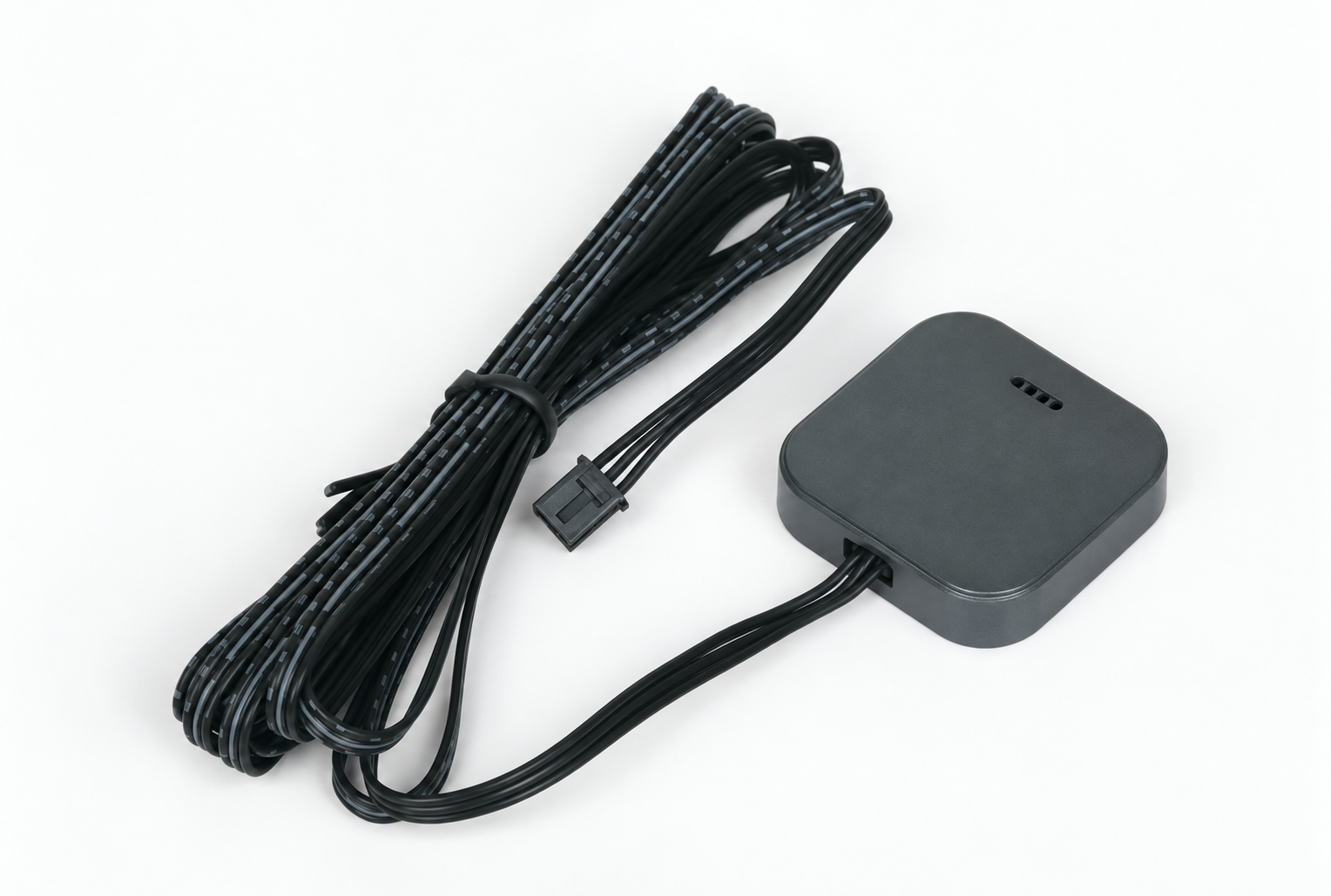

Enlarge ↗12–24V · Voice controller
Only Chinese commands are documented. An English page does not imply English voice support.

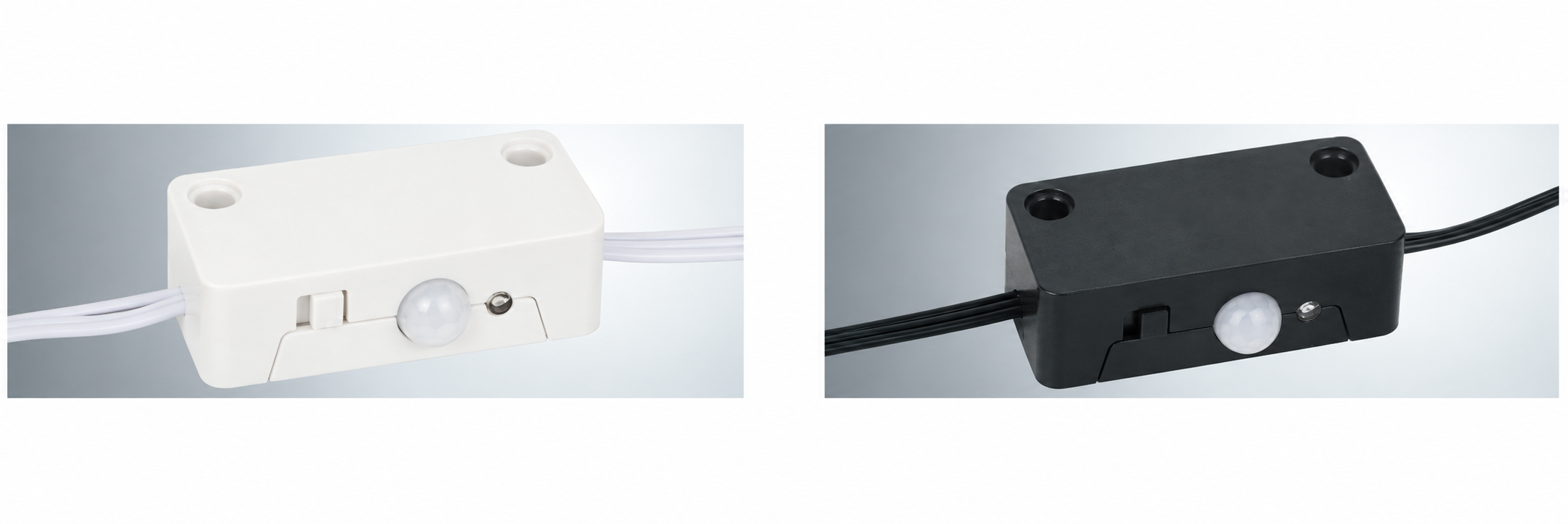

Enlarge ↗DC 5–24V · Under-bed lighting control
Confirm day/night behaviour, mounting location and luminaire load.
Enlarge ↗Motion / hand-wave-touch options
Confirm panel material, thickness and the selected sensing function.

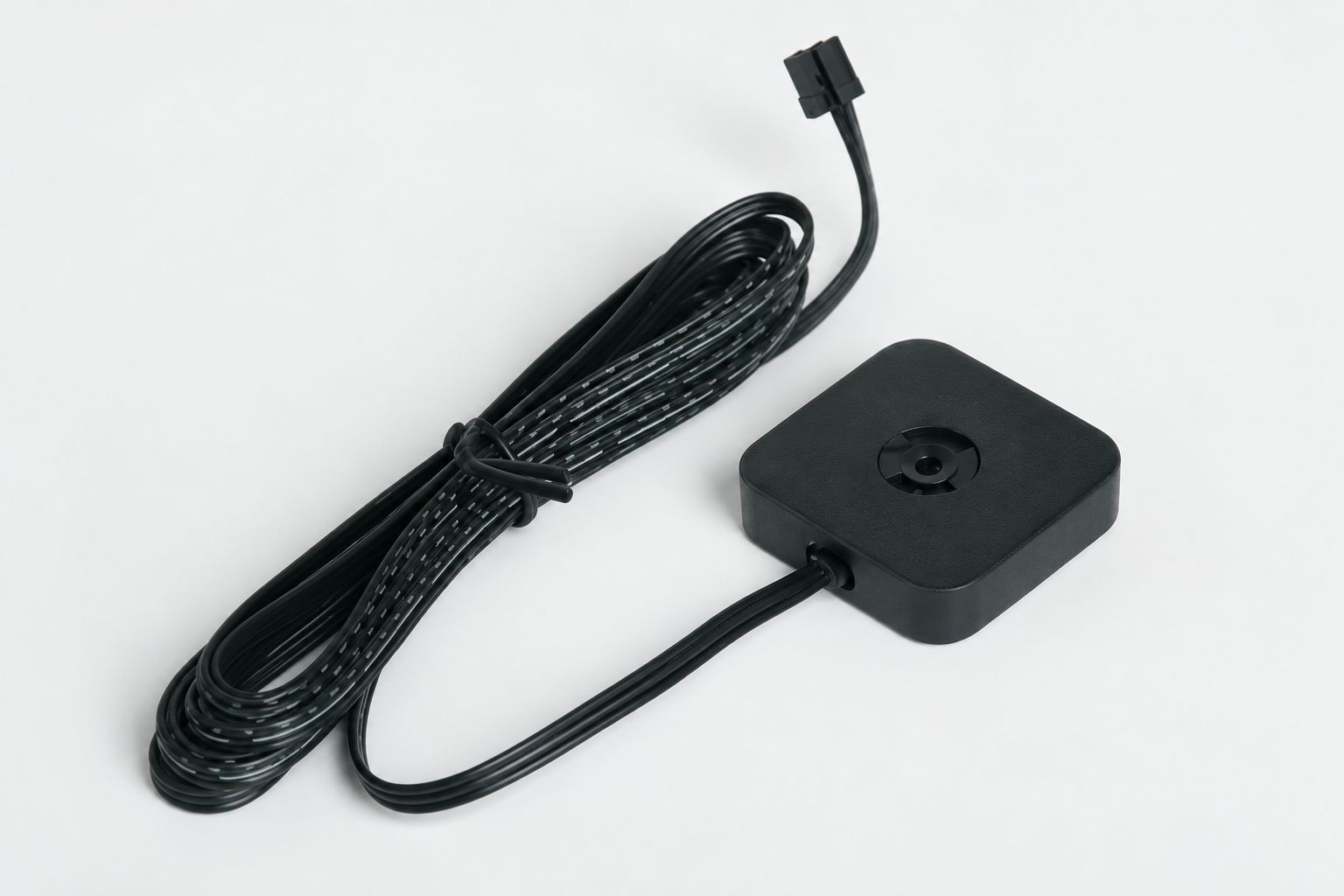

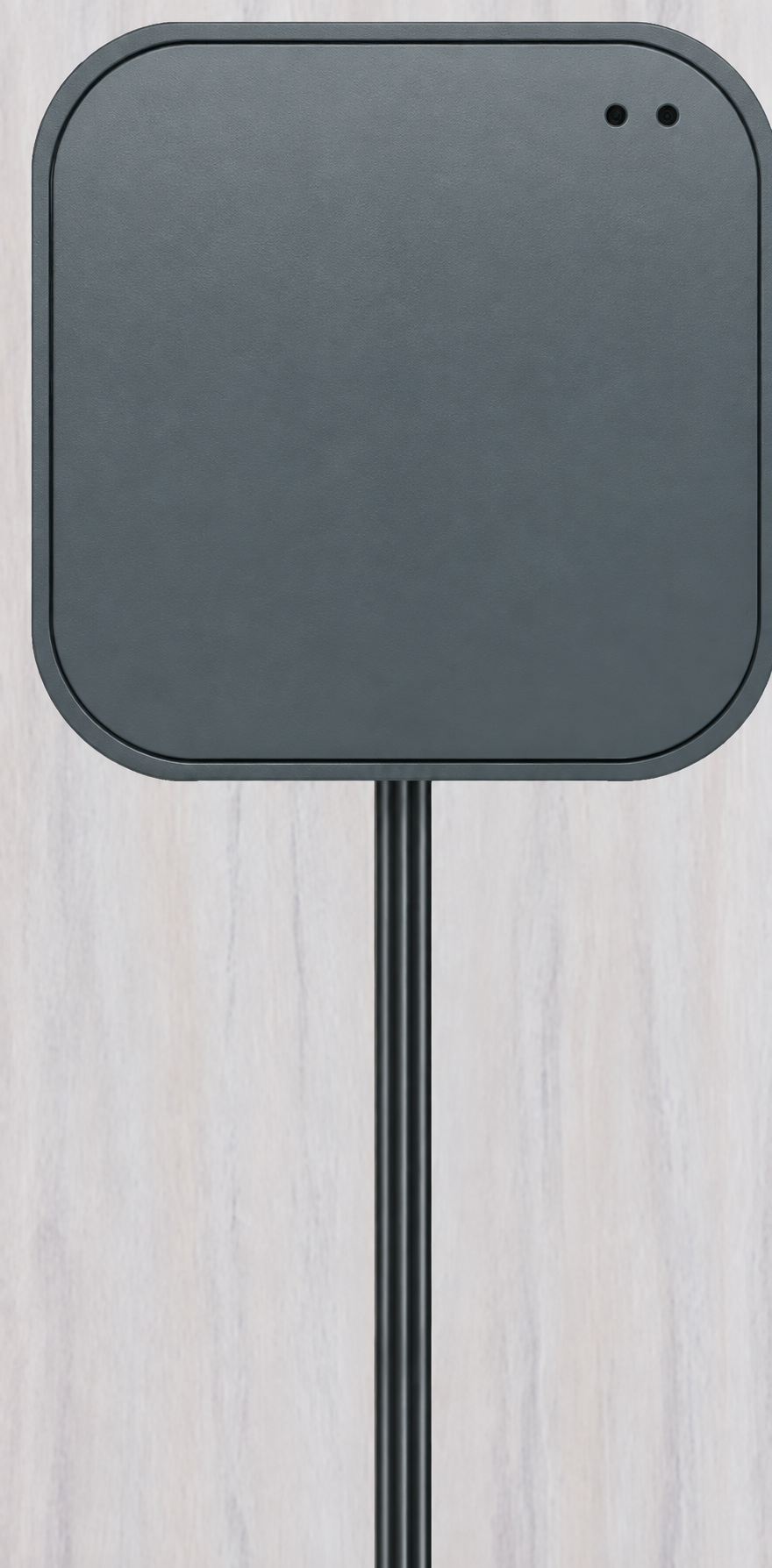

Enlarge ↗12–24V · Partition control reference
Combined sensing functions; verify interaction logic for the selected version.

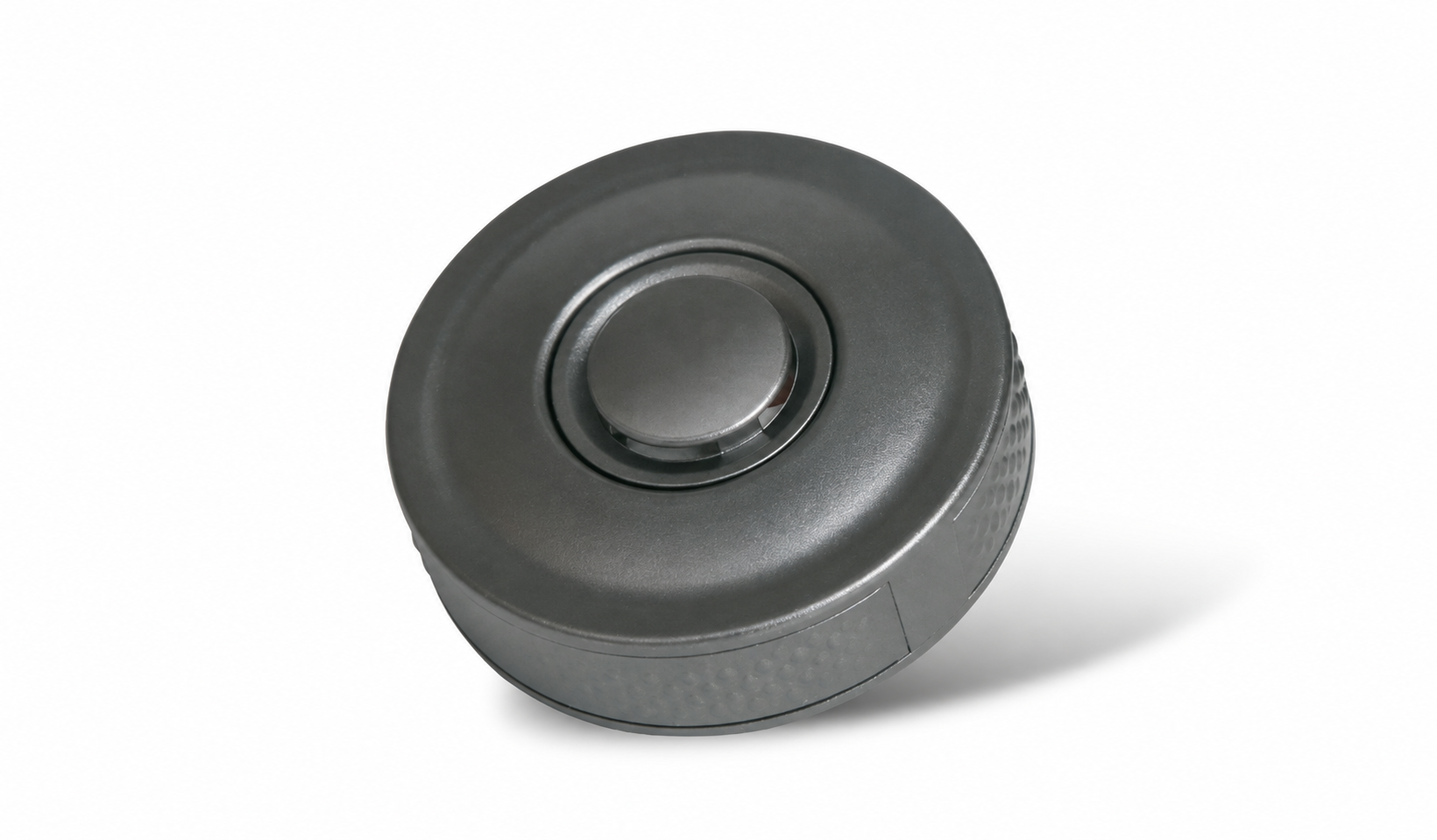

Enlarge ↗12V · Low-voltage version
Conflicting 10 / 20-second delay figures need verification.
03 / SPECIFY AS A SYSTEM
Review the solderless strip, supply, controller and sensor together. This is a selection framework, not wiring instructions.
Explore solderless silicone LED strips →Specify strip model, length and voltage. Keep low-voltage and mains systems separate.
Verify input conditions, output, current, total load and ventilation.
Confirm polarity, pinout, central/individual control, dimming and RF pairing.
Check cutouts, panel thickness, detection range and the included components.
SELECTION NOTES
Linked to solderless lighting, with separate supply, sensor and application-control selection—not mixed with channels and clips.
FD24 output voltage, some wireless frequencies and presence-sensor delays remain unconfirmed and are not supply commitments.
Images illustrate appearance; model details, functions and specifications are available in each card. Image cleanup is not recovery of real detail. Confirm mounting, holes and connectors against verified technical data and the actual item.
