LED STRIP COLLECTION / COB

COB LED stripsA continuous line of light.

Explore continuous linear lighting, then match colour, PCB width and installation requirements to your project.

Existing models30SelectionColour / Width / Voltage

24V 8 mm Single-Color COB LED Strip · 320D standard — product photograph

Series reference · Refer to each model for specifications

01 / COB COLOUR REFERENCE

Find your direction through colour.

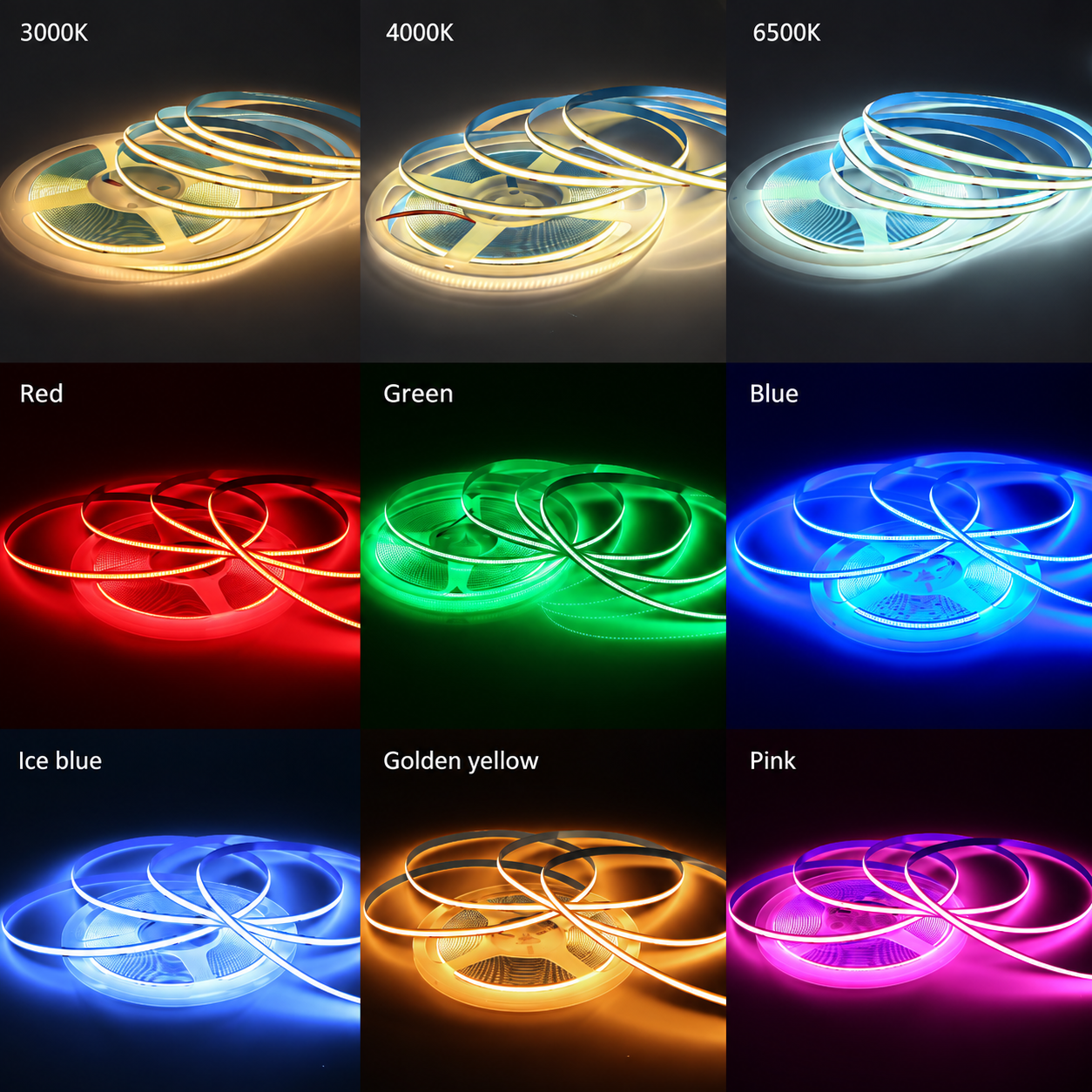

Source imagery illustrates colour effects, not the available options of every model. Screens and camera exposure can differ from actual light output.

COB LED strip colour reference with English labels — Click to enlarge · English-labelled reference

Choose the effect. Check the configuration.

White light & CCT

Select a warm, neutral or cool direction. Confirm the exact CCT on the model page.

Single & multiple colours

Single colour, RGB, RGBW and tunable white use different configurations; illustrated colours are not universal options.

Control & power

Addressable models require matching protocols, controllers and power supplies; appearance alone does not establish compatibility.

Check specifications by series ↓

02 / PCB WIDTH

A considered fit, behind the light.

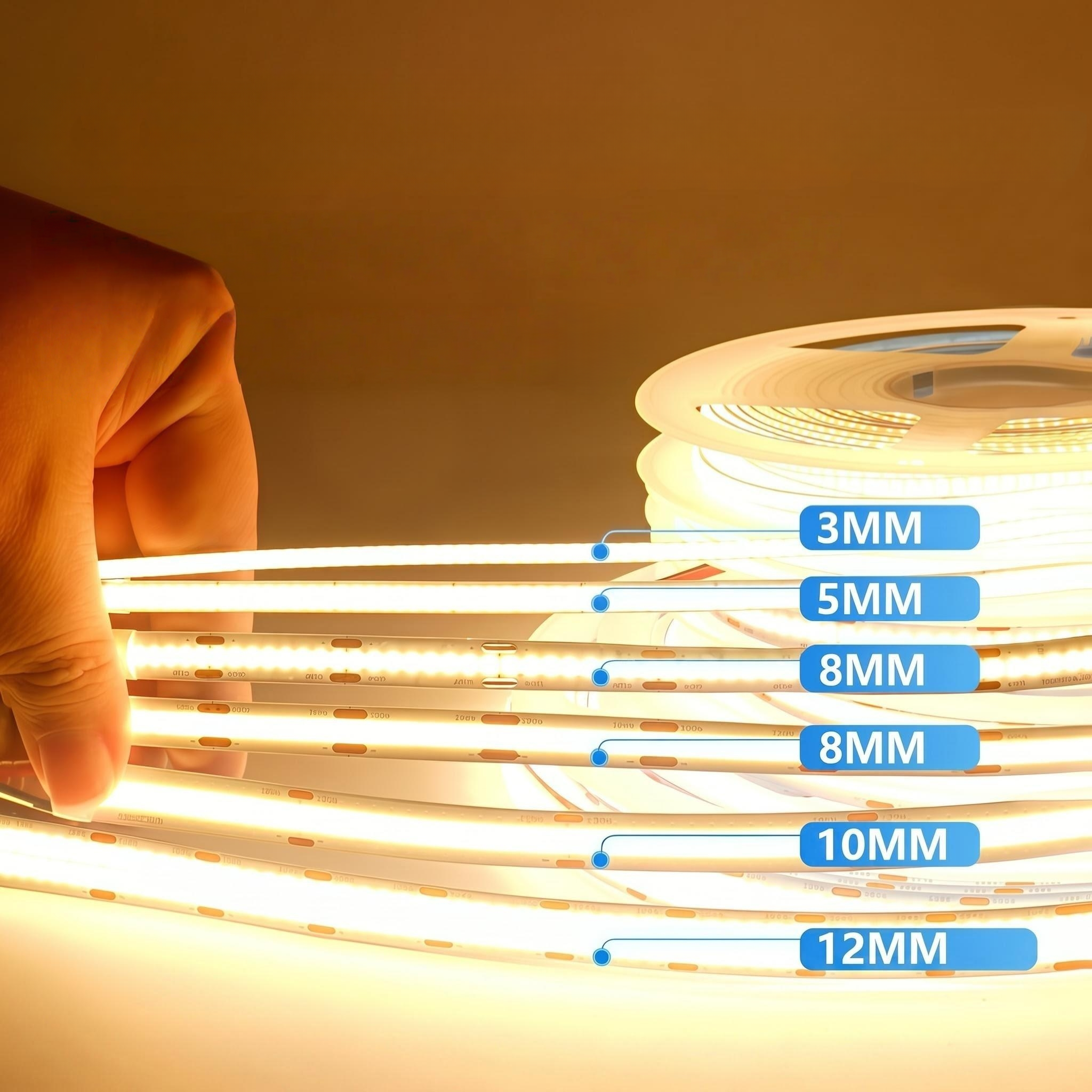

COB PCB width reference. Confirm exact dimensions on the relevant model page.

COB PCB widths: 3 mm, 5 mm, 8 mm, 10 mm and 12 mm

PCB width & installation space

Check PCB width, channel clearance and thermal requirements. Reference imagery does not replace model-specific drawings or indicate that every width is available for every model.

Explore three connector types ↓

03 / QUICK CONNECTORS

Input. Straight. Corner.

Three 8 mm single-colour connector references. Match PCB width, contact count, pad layout, voltage and current rating; do not assume compatibility with RGB or addressable strips.

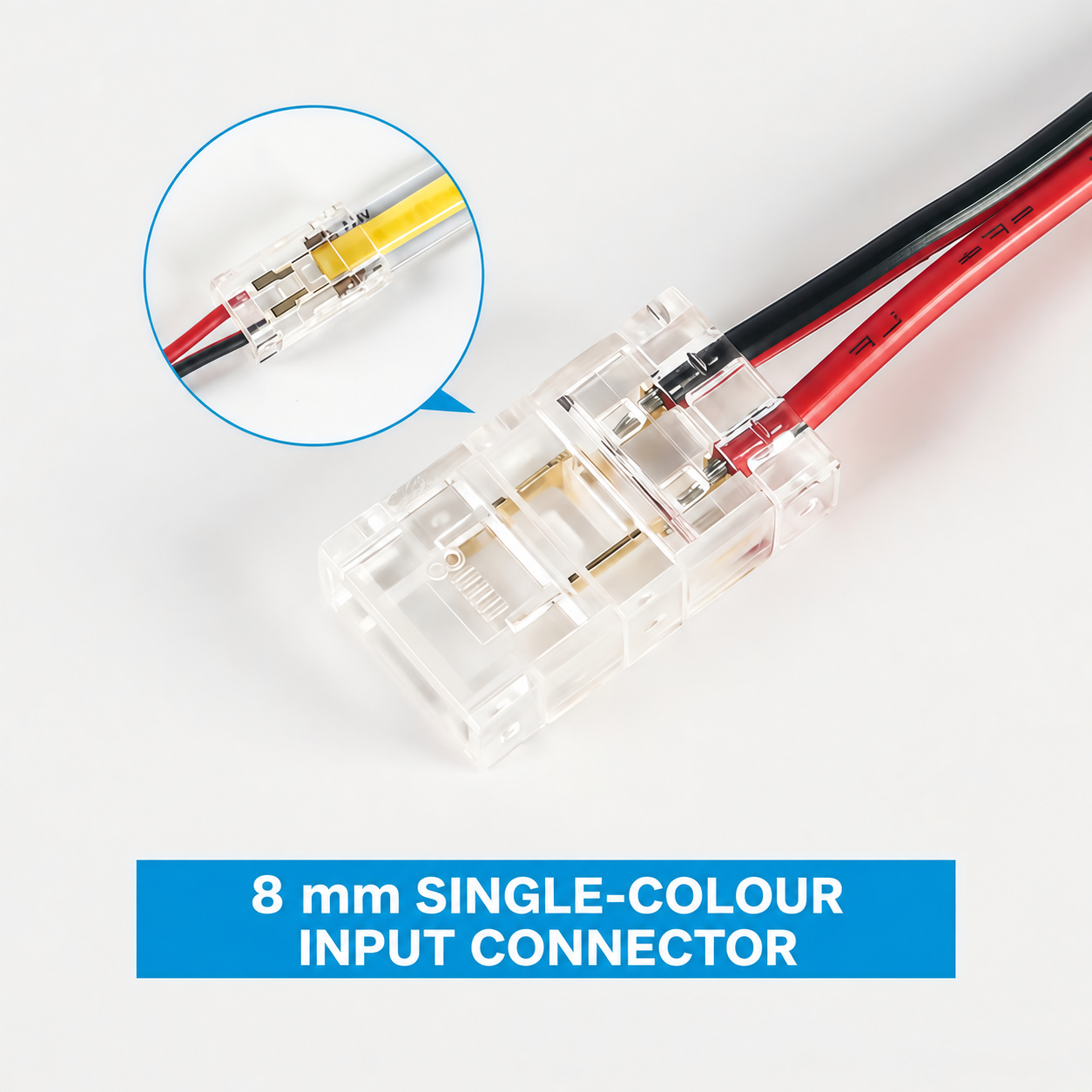

8 mm single-colour LED strip input connector — **8 mm · Input connector**
Connects power leads to the strip; check polarity.

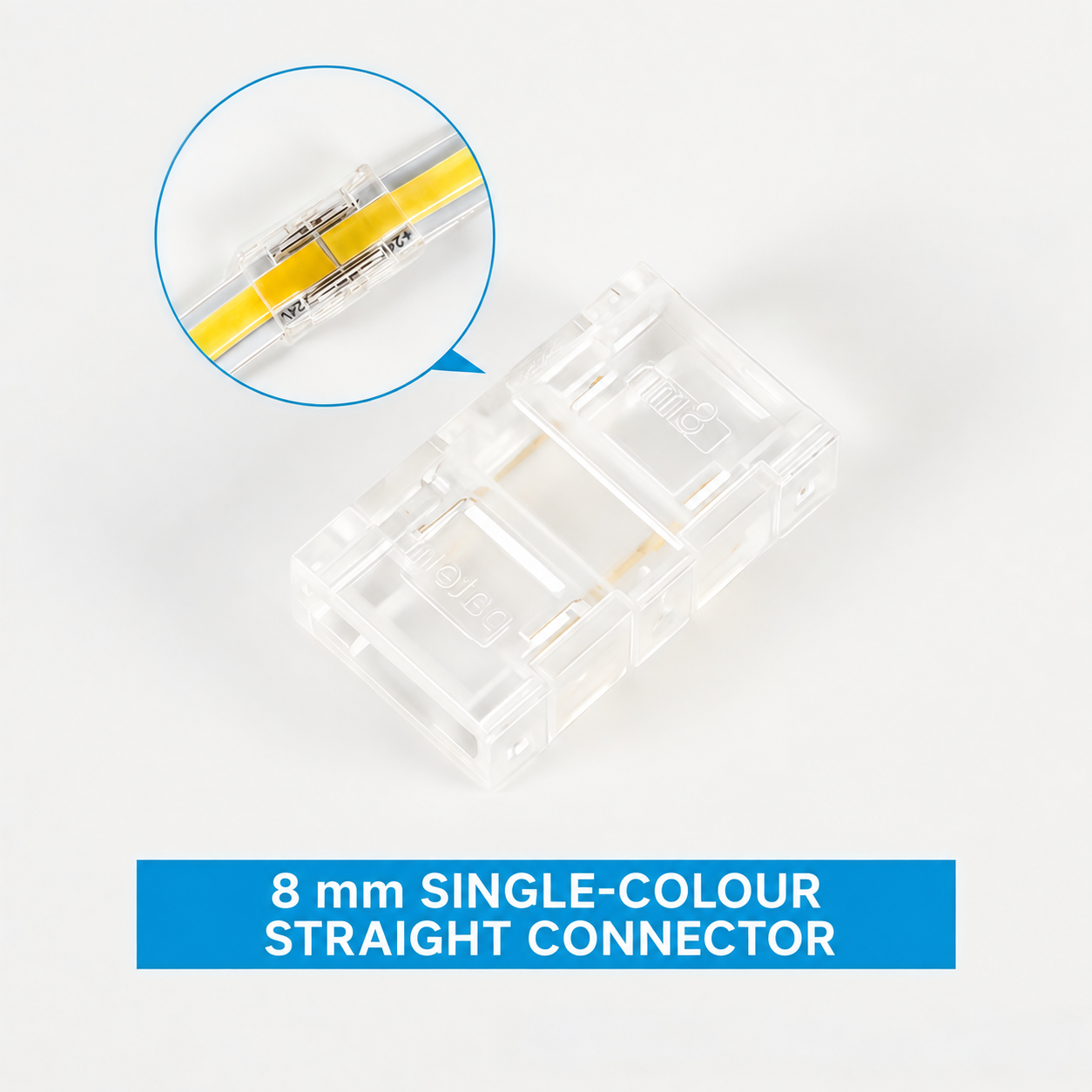

8 mm single-colour LED strip straight connector — **8 mm · Straight connector**
Joins two strip sections in a straight line; check pad and contact alignment.

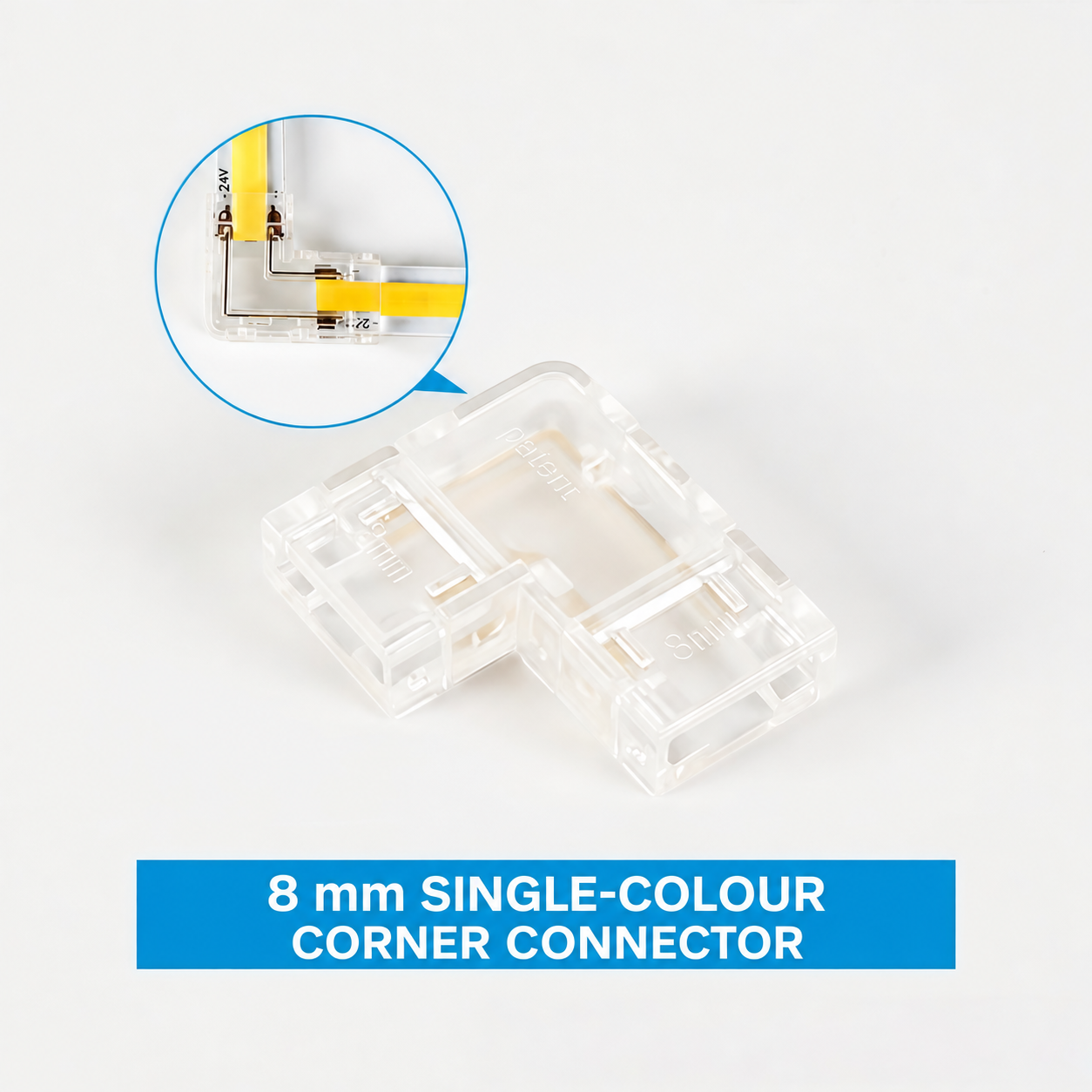

8 mm single-colour LED strip corner connector — **8 mm · Corner connector**
Connects strips around a corner; check clearance and orientation.

03 · Products

Browse by product series

Product series 01

Single-color COB strips

9 products

LED Strip Lights / COB LED Strips

24V 8 mm Single-Color COB LED Strip · 320D standard

Internal ref · COB-001

Voltage: 24V
PCB width: 8 mm
Stated power: 12W *
Chip count: 320PCS *
Cutting interval: 50 mm
White temperature: 3000K / 4000K / 6000K
Color rendering: CRI >90

* Stated power and chip count; reference length to confirm.View product

LED Strip Lights / COB LED Strips

24V 8 mm Single-Color COB LED Strip · 480D · 10 m no-drop version

Internal ref · COB-002

Voltage: 24V
PCB width: 8 mm
Stated power: 12W *
Chip count: 480PCS *
Cutting interval: 50 mm
White temperature: 3000K / 4000K / 6000K
Color rendering: CRI >90

* Stated power and chip count; reference length to confirm.View product

LED Strip Lights / COB LED Strips

24V 8 mm Single-Color COB LED Strip · 312D dam construction · 10 m no-drop version

Internal ref · COB-003

Voltage: 24V
PCB width: 8 mm
Stated power: 12W *
Chip count: 312PCS *
Cutting interval: 38 mm
White temperature: 3000K / 4000K / 6000K
Color rendering: CRI >90

* Stated power and chip count; reference length to confirm.View product

LED Strip Lights / COB LED Strips

24V 8 mm Single-Color COB LED Strip · 308D · CRI >95 · 10 m no-drop version

Internal ref · COB-004

Voltage: 24V
PCB width: 8 mm
Stated power: 12W *
Chip count: 308PCS *
Cutting interval: 45 mm
White temperature: 3000K / 4000K / 6000K
Color rendering: CRI >95

* Stated power and chip count; reference length to confirm.View product

LED Strip Lights / COB LED Strips

24V 12 mm Single-Color COB LED Strip · 600D dual-row

Internal ref · COB-005

Voltage: 24V
PCB width: 12 mm
Stated power: 20W-24W *
Chip count: 600PCS *
Cutting interval: 20 mm
White temperature: 3000K / 4000K / 6000K
Color rendering: CRI >90

* Stated power and chip count; reference length to confirm.View product

LED Strip Lights / COB LED Strips

24V 30 mm Single-Color COB LED Strip · 1600D · 30 mm wide PCB

Internal ref · COB-006

Voltage: 24V
PCB width: 30 mm
Stated power: 25W-30W *
Chip count: 1600PCS *
Cutting interval: 25 mm
White temperature: 3000K / 4000K / 6000K
Color rendering: CRI >90

* Stated power and chip count; reference length to confirm.View product

LED Strip Lights / COB LED Strips

12V 3 mm Single-Color COB LED Strip · 400D · 3 mm narrow PCB

Internal ref · COB-007

Voltage: 12V
PCB width: 3 mm
Stated power: 7W *
Chip count: 400PCS *
Cutting interval: 10 mm
White temperature: 3000K / 4000K / 6000K
Color rendering: CRI >90

* Stated power and chip count; reference length to confirm.View product

LED Strip Lights / COB LED Strips

12V 5 mm Single-Color COB LED Strip · 320D · 5 mm solderless

Internal ref · COB-009

Voltage: 12V
PCB width: 5 mm
Stated power: 9W *
Chip count: 320PCS *
Cutting interval: 15 mm
White temperature: 3000K / 4000K / 6000K
Color rendering: CRI >90

* Stated power and chip count; reference length to confirm.View product

LED Strip Lights / COB LED Strips

12V 6.5 mm Single-Color COB LED Strip · 320D · 6.5 mm solderless

Internal ref · COB-010

Voltage: 12V
PCB width: 6.5 mm
Stated power: 9W *
Chip count: 320PCS *
Cutting interval: 15 mm
White temperature: 3000K / 4000K / 6000K
Color rendering: CRI >90

* Stated power and chip count; reference length to confirm.View product

Product series 02

Tunable-white and two-wire COB strips

6 products

LED Strip Lights / COB LED Strips

12V 5 mm Tunable White COB LED Strip · 480D two-wire · 9W version

Internal ref · COB-008

Voltage: 12V
PCB width: 5 mm
Stated power: 9W *
Chip count: 480PCS *
Cutting interval: 10 mm
CCT range: 2700K–6500K
Wiring: 2 wires
Color rendering: CRI >90

* Stated power and chip count; reference length to confirm.View product

LED Strip Lights / COB LED Strips

12V 5 mm Tunable White COB LED Strip · 480D two-wire · 6+6W version

Internal ref · COB-012

Voltage: 12V
PCB width: 5 mm
Stated power: 6+6W *
Chip count: 480PCS *
Cutting interval: 10 mm
CCT range: 2700K–6500K
Wiring: 2 wires
Color rendering: CRI >90

* Stated power and chip count; reference length to confirm.View product

LED Strip Lights / COB LED Strips

24V 5 mm Tunable White COB LED Strip · 576D three-wire tunable white

Internal ref · COB-013

Voltage: 24V
PCB width: 5 mm
Stated power: 6+6W *
Chip count: 576PCS *
Cutting interval: 28 mm
CCT range: 2700K–6500K
Wiring: 3 wires
Color rendering: CRI >90

* Stated power and chip count; reference length to confirm.View product

LED Strip Lights / COB LED Strips

24V 8 mm Tunable White COB LED Strip · 480D two-wire long-PCB tunable white

Internal ref · COB-014

Voltage: 24V
PCB width: 8 mm
Stated power: 10+10W *
Chip count: 480PCS *
Cutting interval: 50 mm
CCT range: 2700K–6500K
Wiring: 2 wires
Color rendering: CRI >90

* Stated power and chip count; reference length to confirm.View product

LED Strip Lights / COB LED Strips

24V 8 mm Tunable White COB LED Strip · 560D dam tunable white (35/60 copper to confirm)

Internal ref · COB-015

Voltage: 24V
PCB width: 8 mm
Stated power: 10+10W *
Chip count: 560PCS *
Cutting interval: 50 mm
CCT range: 2700K–6500K
Color rendering: CRI >90

* Stated power and chip count; reference length to confirm.View product

LED Strip Lights / COB LED Strips

24V 10 mm Tunable White COB LED Strip · 624D three-wire long-PCB tunable white

Internal ref · COB-016

Voltage: 24V
PCB width: 10 mm
Stated power: 9+9W *
Chip count: 624PCS *
Cutting interval: 36 mm
CCT range: 2700K–6500K
Wiring: 3 wires
Color rendering: CRI >90

* Stated power and chip count; reference length to confirm.View product

Product series 03

High-voltage COB strips

3 products

LED Strip Lights / COB LED Strips

220V 8 mm High-Voltage Single-Color COB LED Strip · 288D · 8 mm high-voltage

Internal ref · COB-011

Voltage: 220V
PCB width: 8 mm
Stated power: 10W *
Chip count: 288PCS *
Cutting interval: 500 mm
White temperature: 3000K / 4000K / 6000K
Color rendering: CRI >80

* Stated power and chip count; reference length to confirm.View product

LED Strip Lights / COB LED Strips

220V 10 mm High-Voltage Single-Color COB LED Strip · 288D IP65 · 100M-marked version

Internal ref · COB-029

Voltage: 220V
PCB width: 10 mm
Stated power: 10W *
Chip count: 288PCS *
Cutting interval: 500 mm
White temperature: 3000K / 4000K / 6000K
Color rendering: CRI >80

* Stated power and chip count; reference length to confirm.View product

LED Strip Lights / COB LED Strips

220V 10 mm High-Voltage Single-Color COB LED Strip · 240D IP65 · driverless high-transparency version

Internal ref · COB-030

Voltage: 220V
PCB width: 10 mm
Stated power: 10W *
Chip count: 240PCS *
Cutting interval: 100 mm
White temperature: 3000K / 4000K / 6000K
Color rendering: CRI >80

* Stated power and chip count; reference length to confirm.View product

Product series 04

RGB COB strips

5 products

LED Strip Lights / COB LED Strips

24V 10 mm RGB COB LED Strip · 420D RGB

Internal ref · COB-017

Voltage: 24V
PCB width: 10 mm
Stated power: 12W *
Chip count: 420PCS *
Cutting interval: 50 mm
Light color: RGB

* Stated power and chip count; reference length to confirm.View product

LED Strip Lights / COB LED Strips

5V / 12V 5 mm RGB COB LED Strip · 450D RGB · 5V / 12V versions

Internal ref · COB-018

Voltage: 5V / 12V
PCB width: 5 mm
Stated power: 10W *
Chip count: 450PCS *
Cutting interval: 20 mm
Light color: RGB

* Stated power and chip count; reference length to confirm.View product

LED Strip Lights / COB LED Strips

24V 10 mm RGB COB LED Strip · 576D RGB

Internal ref · COB-019

Voltage: 24V
PCB width: 10 mm
Stated power: 12W *
Chip count: 576PCS *
Cutting interval: 62.5 mm
Light color: RGB

* Stated power and chip count; reference length to confirm.View product

LED Strip Lights / COB LED Strips

5V 8 mm RGB COB LED Strip · 576D RGB · 5V version

Internal ref · COB-020

Voltage: 5V
PCB width: 8 mm
Stated power: 8W *
Chip count: 576PCS *
Cutting interval: 20 mm
Light color: RGB

* Stated power and chip count; reference length to confirm.View product

LED Strip Lights / COB LED Strips

24V 10 mm RGB COB LED Strip · 576D RGB long-PCB

Internal ref · COB-021

Voltage: 24V
PCB width: 10 mm
Stated power: 12W *
Chip count: 576PCS *
Cutting interval: 62.5 mm
Light color: RGB

* Stated power and chip count; reference length to confirm.View product

Product series 05

RGBW / RGB+CCT COB strips

2 products

LED Strip Lights / COB LED Strips

24V 12 mm RGBW COB LED Strip · 784D RGBW · selectable white versions

Internal ref · COB-022

Voltage: 24V
PCB width: 12 mm
Stated power: 20W *
Chip count: 784PCS *
Cutting interval: 70 mm
White temperature: 3000K / 4000K / 6000K
Color rendering: CRI >90

* Stated power and chip count; reference length to confirm.View product

LED Strip Lights / COB LED Strips

24V 12 mm RGB + Tunable White COB LED Strip · 840D RGB + tunable white

Internal ref · COB-023

Voltage: 24V
PCB width: 12 mm
Stated power: 20W *
Chip count: 840PCS *
Cutting interval: 35 mm
White temperature: 2700K–6500K
Color rendering: CRI >90

* Stated power and chip count; reference length to confirm.View product

Product series 06

Addressable and chasing COB strips

5 products

LED Strip Lights / COB LED Strips

24V 10 mm Single-Color Chasing COB LED Strip · 360D single-color chasing · 2811 IC

Internal ref · COB-024

Voltage: 24V
PCB width: 10 mm
Stated power: 12W *
Chip count: 360PCS *
Cutting interval: 83 mm
White temperature: 3000K / 4000K / 6000K
Control IC: 2811

* Stated power and chip count; reference length to confirm.View product

LED Strip Lights / COB LED Strips

5V 5 mm Addressable RGB COB LED Strip · 160D addressable RGB · 2811 IC

Internal ref · COB-025

Voltage: 5V
PCB width: 5 mm
Stated power: 8W *
Chip count: 160PCS *
Cutting interval: 12.5 mm
Light color: Addressable RGB
Control IC: 2811

* Stated power and chip count; reference length to confirm.View product

LED Strip Lights / COB LED Strips

24V 10 mm Addressable RGB COB LED Strip · 420D addressable RGB · 2811 IC

Internal ref · COB-026

Voltage: 24V
PCB width: 10 mm
Stated power: 12W *
Chip count: 420PCS *
Cutting interval: 100 mm
Light color: Addressable RGB
Control IC: 2811

* Stated power and chip count; reference length to confirm.View product

LED Strip Lights / COB LED Strips

24V 10 mm Addressable RGB COB LED Strip · 720D addressable RGB · 2811 IC

Internal ref · COB-027

Voltage: 24V
PCB width: 10 mm
Stated power: 12W *
Chip count: 720PCS *
Cutting interval: 50 mm
Light color: Addressable RGB
Control IC: 2811

* Stated power and chip count; reference length to confirm.View product

LED Strip Lights / COB LED Strips

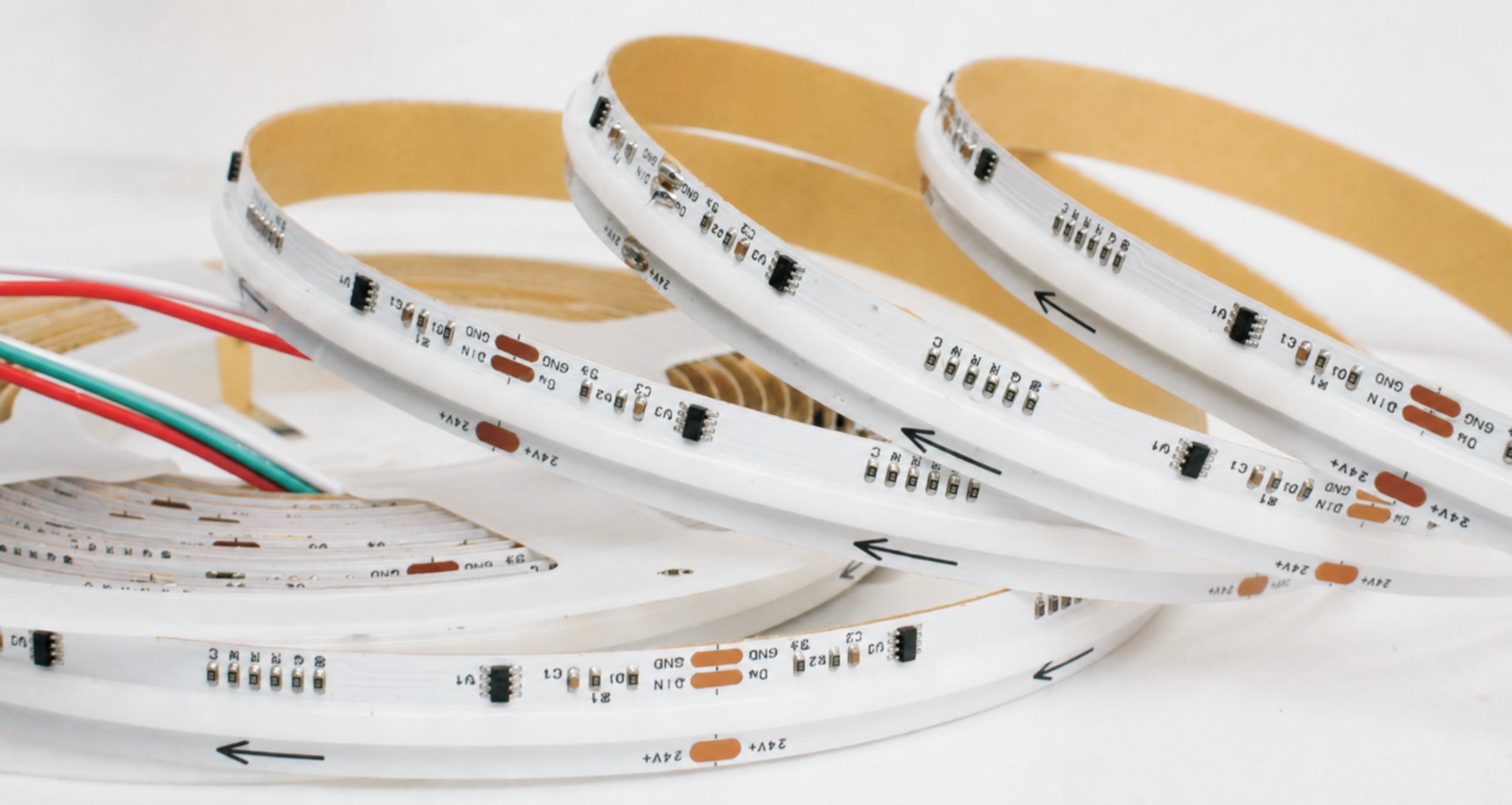

24V 12 mm Addressable RGB + Tunable White COB LED Strip · 840D addressable RGB + tunable white · 2811 IC

Internal ref · COB-028

Voltage: 24V
PCB width: 12 mm
Stated power: 20W *
Chip count: 840PCS *
Cutting interval: 83 mm
White temperature: 2700K–6500K
Control IC: 2811

* Stated power and chip count; reference length to confirm.View product

SELECTION GUIDE

Choosing a COB LED strip

Match the PCB and installation

The listed PCB widths range from 3 to 30 mm. Check the exact model's board width, connector and channel clearance; the photograph is not a dimensioned installation drawing.

Choose the white or color control

3000K, 4000K and 6000K on a single-color model are separate color-temperature options, not proof of tunable-white control. For CCT, RGB, RGBW, RGBCW or addressable versions, confirm the wiring, channels and controller compatibility.

Read model-specific electrical details

The catalog includes 5V, 12V, 24V and 220V models, not every voltage for every strip. Cutting intervals vary by model. Power shown in W and chip counts shown in PCS need their length basis confirmed before calculating a power supply or comparing density.

Before you specify

Is every COB LED strip free-cut or solderless?

No. Follow the cutting interval on the selected model. The COB models marked solderless still specify a 1.5 cm cutting interval; they must not inherit the unrestricted-cutting feature of the solderless silicone series. Confirm the matching connector before ordering.

How do single-color white, CCT and addressable COB differ?

Single-color white uses a selected color temperature. CCT versions combine warm and cool white, while RGB, RGBW and RGBCW have different color and white-channel arrangements. Addressable versions also require a compatible data controller. Check the exact model's wiring and IC information; the same width or chip count does not make controllers interchangeable.

Do the 10 m no-voltage-drop and IP65 features apply to the whole COB series?

No. The 10 m claim belongs only to the 24V versions explicitly marked with that feature. IP65 is listed for specific 220V models, not for all COB strips. Confirm powered-run length, protection and the complete termination system for the selected version; high-voltage models require appropriate professional installation.

B2B PROJECT SUPPORT

Need help matching a product to your project?

Send your target dimensions, installation environment and quantity. For LED strips, include the voltage and run length; for empty tubing, include the PCB width to be fitted.

Request a quote Discuss on WhatsApp
