VIDEO 0101
Product system
Solderless Silicone LED Strips
Cut to the required length and connect with matched solderless connectors, without soldering wires. Choose from side-emitting, borderless front-emitting and flanged front-emitting profiles.
Selection guide & questions ↓- Product models
- 15
- Model groups
- 3
01 / VIDEO SHOWCASE
Watch first. Then choose your model.
Explore both videos, then refer to the product specifications for models and dimensions. Load a player, then press play inside it.
VIDEO 01
VIDEO 0202

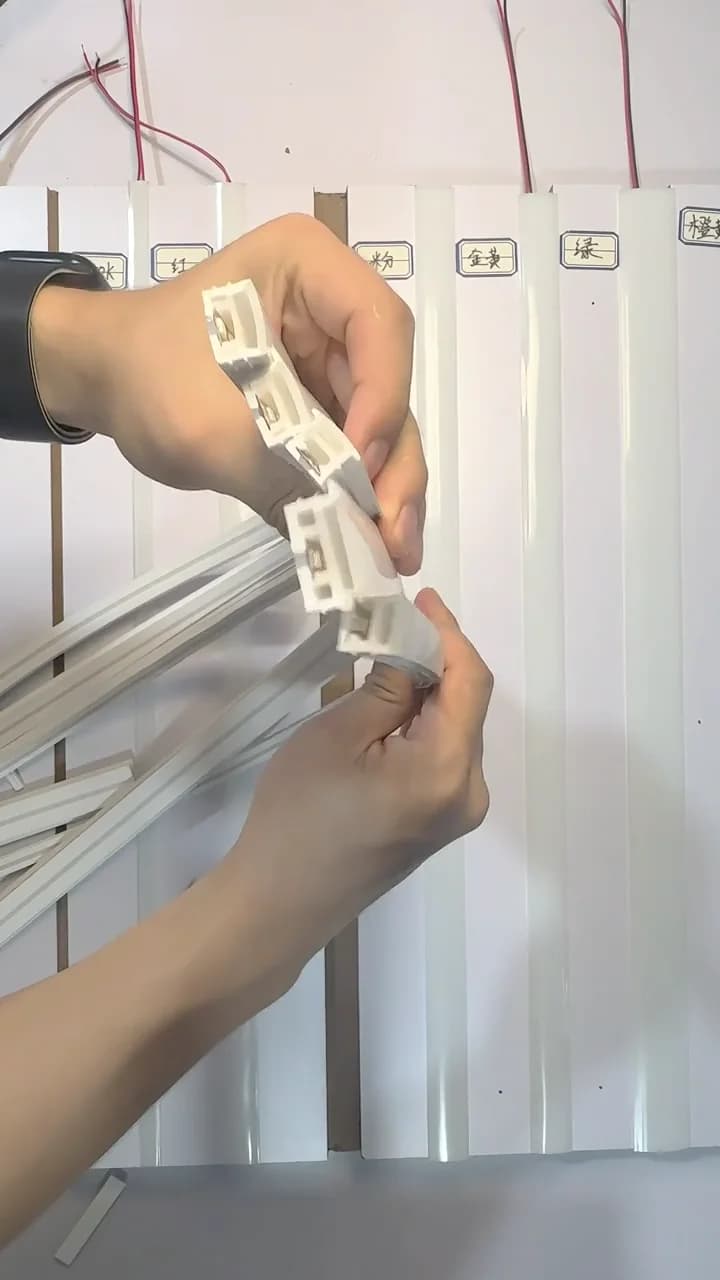

Solderless front-emitting silicone LED strip
Playback unavailable? Open video separately ↗03 · Products
Browse by product series
15
Product series 01
Solderless Side-Emitting Series
Silicone LED Strips / Solderless Silicone LED Strips
4 × 8 mm Solderless Side-Emitting Silicone LED Strip
Internal ref · SL-0408- Size
- 4 mm × 8 mm
- Light
- Side view
- Voltage
- 12V / 24V / 110V / 220V
Silicone LED Strips / Solderless Silicone LED Strips
4 × 10 mm Solderless Side-Emitting Silicone LED Strip
Internal ref · SL-0410- Size
- 4 mm × 10 mm
- Light
- Side view
- Voltage
- 12V / 24V / 110V / 220V
Silicone LED Strips / Solderless Silicone LED Strips
6 × 10 mm Solderless Side-Emitting Silicone LED Strip
Internal ref · SL-0610- Size
- 6 mm × 10 mm
- Light
- Side view
- Voltage
- 12V / 24V / 110V / 220V
Silicone LED Strips / Solderless Silicone LED Strips
6 × 12 mm Solderless Side-Emitting Silicone LED Strip
Internal ref · SL-0612- Size
- 6 mm × 12 mm
- Light
- Side view
- Voltage
- 12V / 24V / 110V / 220V
Product series 02
Solderless Front-Emitting Borderless Series
Silicone LED Strips / Solderless Silicone LED Strips
6 × 6 mm Solderless Front-Emitting Borderless Silicone LED Strip
Internal ref · SL-0606- Size
- 6 mm × 6 mm
- Light
- Front view
- Voltage
- 12V / 24V / 110V / 220V
Silicone LED Strips / Solderless Silicone LED Strips
8 × 8 mm Solderless Front-Emitting Borderless Silicone LED Strip
Internal ref · SL-0808- Size
- 8 mm × 8 mm
- Light
- Front view
- Voltage
- 12V / 24V / 110V / 220V
Silicone LED Strips / Solderless Silicone LED Strips
10 × 10 mm Solderless Front-Emitting Borderless Silicone LED Strip
Internal ref · SL-1010- Size
- 10 mm × 10 mm
- Light
- Front view
- Voltage
- 12V / 24V / 110V / 220V
Silicone LED Strips / Solderless Silicone LED Strips
15 × 10 mm Solderless Front-Emitting Borderless Silicone LED Strip
Internal ref · SL-1510- Size
- 15 mm × 10 mm
- Light
- Front view
- Voltage
- 12V / 24V / 110V / 220V
Silicone LED Strips / Solderless Silicone LED Strips
17 × 7 mm Solderless Front-Emitting Borderless Silicone LED Strip
Internal ref · SL-1707- Size
- 17 mm × 7 mm
- Light
- Front view
- Voltage
- 12V / 24V / 110V / 220V
Silicone LED Strips / Solderless Silicone LED Strips
20 × 10 mm Solderless Front-Emitting Borderless Silicone LED Strip
Internal ref · SL-2010- Size
- 20 mm × 10 mm
- Light
- Front view
- Voltage
- 12V / 24V / 110V / 220V
Product series 03
Solderless Front-Emitting Flanged Series
Silicone LED Strips / Solderless Silicone LED Strips
10 × 10 mm Solderless Front-Emitting Flanged Silicone LED Strip
Internal ref · SL-1010-CC- Size
- 10 mm × 10 mm
- Light
- Front view
- Voltage
- 12V / 24V / 110V / 220V
Silicone LED Strips / Solderless Silicone LED Strips
12 × 10 mm Solderless Front-Emitting Flanged Silicone LED Strip
Internal ref · SL-1210-CC- Size
- 12 mm × 10 mm
- Light
- Front view
- Voltage
- 12V / 24V / 110V / 220V
Silicone LED Strips / Solderless Silicone LED Strips
15 × 10 mm Solderless Front-Emitting Flanged Silicone LED Strip
Internal ref · SL-1510-CC- Size
- 15 mm × 10 mm
- Light
- Front view
- Voltage
- 12V / 24V / 110V / 220V
Silicone LED Strips / Solderless Silicone LED Strips
17 × 7 mm Solderless Front-Emitting Flanged Silicone LED Strip
Internal ref · SL-1707-CC- Size
- 17 mm × 7 mm
- Light
- Front view
- Voltage
- 12V / 24V / 110V / 220V
Silicone LED Strips / Solderless Silicone LED Strips
20 × 10 mm Solderless Front-Emitting Flanged Silicone LED Strip
Internal ref · SL-2010-CC- Size
- 20 mm × 10 mm
- Light
- Front view
- Voltage
- 12V / 24V / 110V / 220V
SELECTION GUIDE
Choosing a solderless silicone strip
Select the emitting face
Choose side emission or front emission for the required lighting direction. Then check the actual profile drawing rather than relying on the nominal size alone.
Match the profile and connector
Borderless and flanged profiles have different installation outlines. Confirm the complete width, end caps and connector for the exact profile.
Plan the powered sections
For 12V/24V versions, voltage and brightness remain stable within 8 m. Beyond 8 m, voltage drop reduces brightness; confirm the power-feed arrangement for longer sections.
Before you specify
What do free cut and solderless mean?
Free cut means the strip can be cut to the required length without following a fixed cutting interval. Solderless means the matched connector makes the electrical connection without soldering wires. Confirm the termination and sealing method for the chosen voltage version.
Does the 8 m no-voltage-drop feature apply to 110V/220V?
The 8 m statement applies to 12V/24V versions. Do not extend it to 110V/220V. High-voltage cutting, connection, power and permitted run length must be confirmed for the selected version.
Can the same accessories fit flanged and borderless strips?
Do not assume interchangeability, even when the nominal dimensions match. Compare the complete cross-section and confirm the connector, end caps, mounting space and sealing system.
B2B PROJECT SUPPORT
Need help matching a product to your project?
Send your target dimensions, installation environment and quantity. For LED strips, include the voltage and run length; for empty tubing, include the PCB width to be fitted.
