COB LED STRIP / COB-010

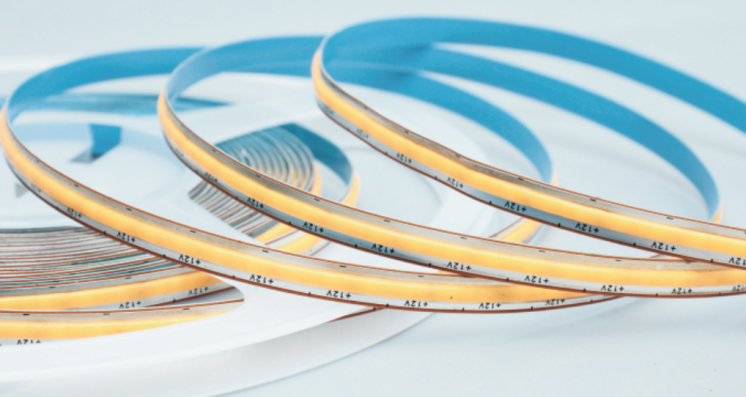

12V 6.5 mm Single-Color COB LED Strip
320D · 6.5 mm solderless
12V single-color COB LED strip, 320D · 6.5 mm solderless, with a 6.5 mm PCB and 15 mm cutting interval. Color-temperature specifications: 3000K / 4000K / 6000K. Match the configuration to the installation, supply and controls.
At a glance320D
- Input voltage
- 12V
- PCB width
- 6.5 mm
- Cutting interval
- 15 mm
- Color rendering
- CRI >90
6.5 mm PCB
Check the installation space against the 6.5 mm PCB. 320D · 6.5 mm solderless.
15 mm cutting interval
Cut at this model's designated markings and match the connectors and controls to the selected configuration.
Solderless connection
Solderless connection format. Confirm the connector and assembly method; cutting still follows this model's interval and marks.
LIGHT & CONTROL
Choose your configuration
Select a configuration for your project. Different white temperatures are separate product versions.
Selected configuration12V · 3000KYour selection identifies the enquiry configuration; the photograph is not recolored.
SIZE & CUTTING
6.5 mm PCB
15 mm cutting interval
This model uses 1.5 cm cutting sections. Follow the actual cutting marks and allow space for the PCB and connections.
Cutting relationship only · Not a scaled engineering drawing. Refer to the product for pads and wiring.
TECHNICAL SPECIFICATIONS
Model specifications
320D · 6.5 mm solderless
Power and chip count retain their stated values. Confirm their reference length before calculating supplies or comparing models.
| Internal reference | COB-010 |
|---|---|
| Product version | 320D · 6.5 mm solderless |
| Input voltage | 12V |
| Input supply type | AC/DC and the matching supply system to confirmConfirm before ordering |
| Light color / control type | Single-Color |
| PCB width | 6.5 mm |
| Cutting interval | 15 mm |
| Stated power (source value) | 9W · reference length to confirmConfirm before ordering |
| Chip count (source value) | 320PCS · reference length to confirmConfirm before ordering |
| Color rendering index | CRI >90 |
| Color temperatures | 3000K / 4000K / 6000K |
BEFORE YOU ORDER
Selection & ordering
- The stated 9W power and 320PCS chip count have no reference length. Confirm the basis before ordering; do not treat them as per-metre values.
- Voltage specification: 12V. Confirm AC/DC input, wiring and compatible supply and controls. Cut at this model's 15 mm marked interval.
- Confirm protection and any outdoor-use configuration. Confirm warranty and powered run length before ordering.
- 3000K, 4000K and 6000K are separate white-light specifications, not three switchable temperatures on one strip.
