COB LED STRIP / COB-029
220V 10 mm High-Voltage Single-Color COB LED Strip
288D IP65 · 100M-marked version
220V high-voltage single-color COB LED strip, 288D IP65 · 100M-marked version, with a 10 mm PCB and 500 mm cutting interval. Color-temperature specifications: 3000K / 4000K / 6000K. Match the configuration to the installation, supply and controls.
At a glance288D
- Input voltage
- 220V
- PCB width
- 10 mm
- Cutting interval
- 500 mm
- Color rendering
- CRI >80
10 mm PCB
Check the installation space against the 10 mm PCB. 288D IP65 · 100M-marked version.
500 mm cutting interval
Cut at this model's designated markings and match the connectors and controls to the selected configuration.
220V high-voltage specification
Confirm the complete supply, termination and protection configuration for the 220V version, including its AC/DC input type.
LIGHT & CONTROL
Choose your configuration
Select a configuration for your project. Different white temperatures are separate product versions.

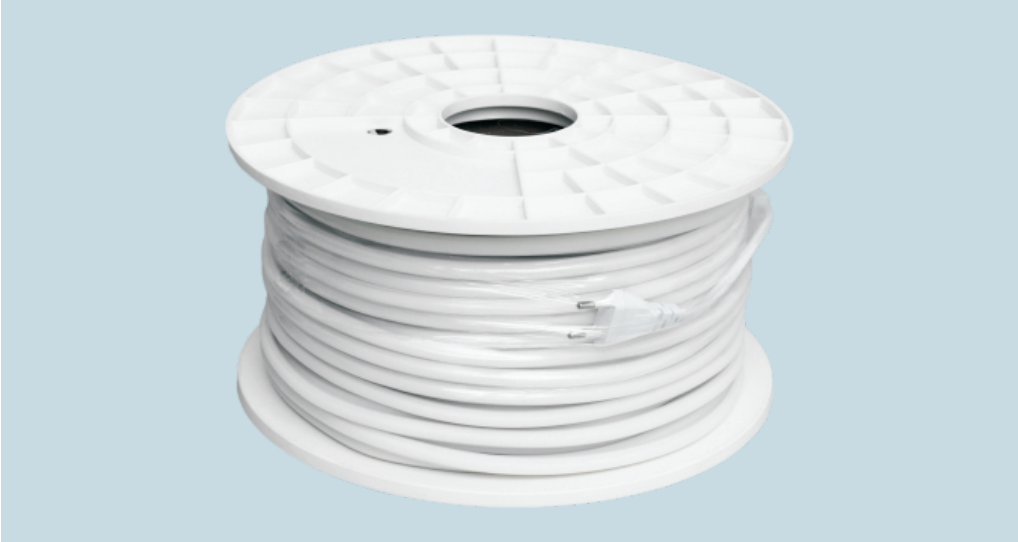

Selected configuration220V · 3000KYour selection identifies the enquiry configuration; the photograph is not recolored.
SIZE & CUTTING
10 mm PCB
500 mm cutting interval
This model uses 50 cm cutting sections. Follow the actual cutting marks and allow space for the PCB and connections.
Cutting relationship only · Not a scaled engineering drawing. Refer to the product for pads and wiring.
TECHNICAL SPECIFICATIONS
Model specifications
288D IP65 · 100M-marked version
Power and chip count retain their stated values. Confirm their reference length before calculating supplies or comparing models.
| Internal reference | COB-029 |
|---|---|
| Product version | 288D IP65 · 100M-marked versionConfirm before ordering |
| Input voltage | 220V |
| Input supply type | AC/DC and the matching supply system to confirmConfirm before ordering |
| Light color / control type | High-Voltage Single-Color |
| PCB width | 10 mm |
| Cutting interval | 500 mm |
| Stated power (source value) | 10W · reference length to confirmConfirm before ordering |
| Chip count (source value) | 288PCS · reference length to confirmConfirm before ordering |
| Color rendering index | CRI >80 |
| Color temperatures | 3000K / 4000K / 6000K |
| Stated protection rating | IP65 |
| 100M marking | Whether this denotes supply length or powered run length is unconfirmedConfirm before ordering |
BEFORE YOU ORDER
Selection & ordering
- The stated 10W power and 288PCS chip count have no reference length. Confirm the basis before ordering; do not treat them as per-metre values.
- Voltage specification: 220V. Confirm AC/DC input, wiring and compatible supply and controls. Cut at this model's 500 mm marked interval.
- This version is marked IP65; confirm protection for the complete termination and installation. Confirm warranty and powered run length before ordering.
- 3000K, 4000K and 6000K are separate white-light specifications, not three switchable temperatures on one strip.
- The model's “100M” marking is unconfirmed and is not a commitment to either supplied roll length or powered run length.
