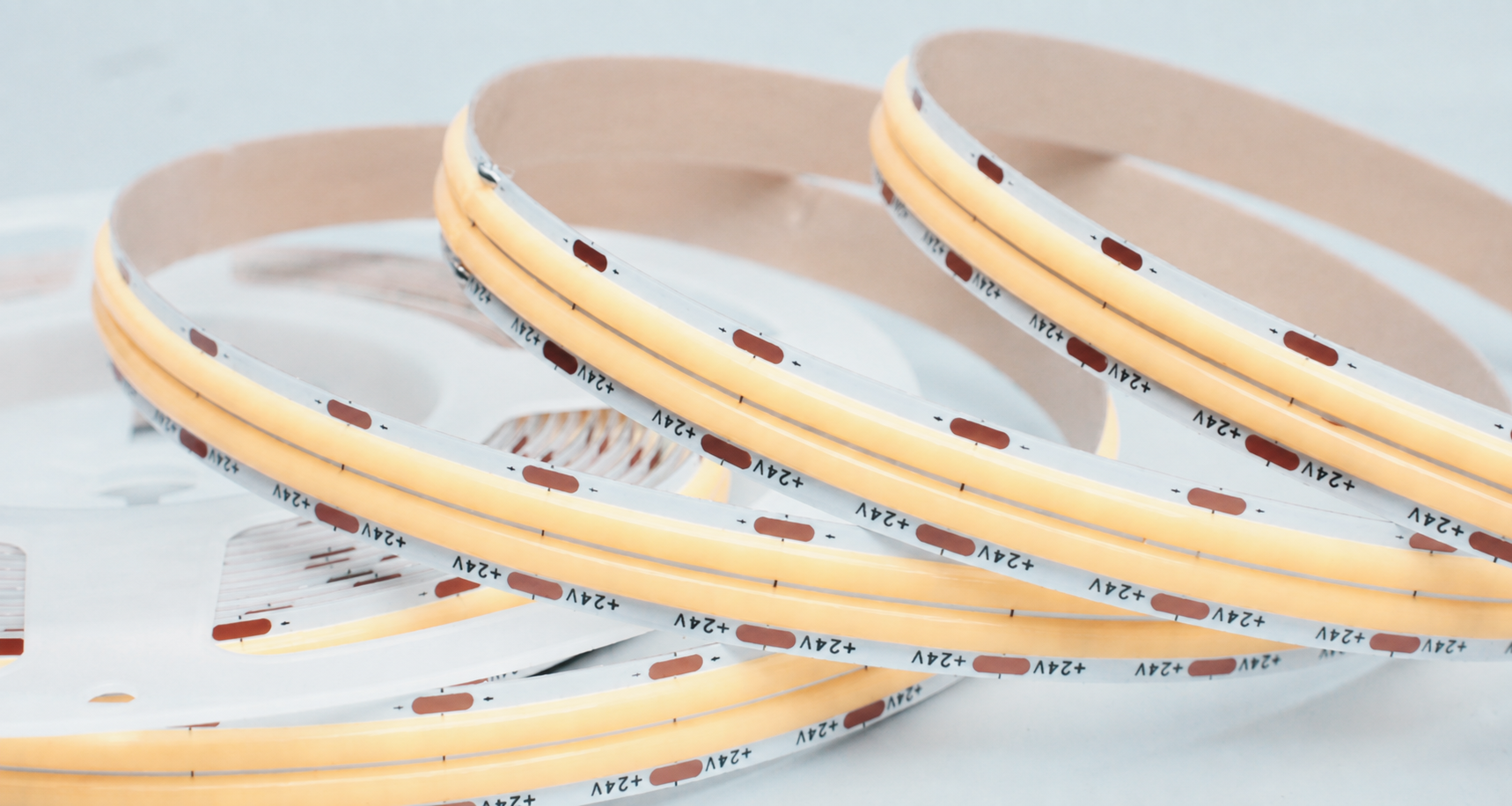

COB LED STRIP / COB-005
24V 12 mm Single-Color COB LED Strip
600D dual-row
24V single-color COB LED strip, 600D dual-row, with a 12 mm PCB and 20 mm cutting interval. Color-temperature specifications: 3000K / 4000K / 6000K. Match the configuration to the installation, supply and controls.
At a glance600D
- Input voltage
- 24V
- PCB width
- 12 mm
- Cutting interval
- 20 mm
- Color rendering
- CRI >90
12 mm PCB
Check the installation space against the 12 mm PCB. 600D dual-row.
20 mm cutting interval
Cut at this model's designated markings and match the connectors and controls to the selected configuration.
Single-Color
Color-temperature specifications: 3000K / 4000K / 6000K, with CRI >90. Confirm the light color and control method for the selected version.
LIGHT & CONTROL
Choose your configuration
Select a configuration for your project. Different white temperatures are separate product versions.
Selected configuration24V · 3000KYour selection identifies the enquiry configuration; the photograph is not recolored.
SIZE & CUTTING
12 mm PCB
20 mm cutting interval
This model uses 2 cm cutting sections. Follow the actual cutting marks and allow space for the PCB and connections.
Cutting relationship only · Not a scaled engineering drawing. Refer to the product for pads and wiring.
TECHNICAL SPECIFICATIONS
Model specifications
600D dual-row
Power and chip count retain their stated values. Confirm their reference length before calculating supplies or comparing models.
| Internal reference | COB-005 |
|---|---|
| Product version | 600D dual-row |
| Input voltage | 24V |
| Input supply type | AC/DC and the matching supply system to confirmConfirm before ordering |
| Light color / control type | Single-Color |
| PCB width | 12 mm |
| Cutting interval | 20 mm |
| Stated power (source value) | 20W-24W · reference length to confirmConfirm before ordering |
| Chip count (source value) | 600PCS · reference length to confirmConfirm before ordering |
| Color rendering index | CRI >90 |
| Color temperatures | 3000K / 4000K / 6000K |
BEFORE YOU ORDER
Selection & ordering
- The stated 20W-24W power and 600PCS chip count have no reference length. Confirm the basis before ordering; do not treat them as per-metre values.
- Voltage specification: 24V. Confirm AC/DC input, wiring and compatible supply and controls. Cut at this model's 20 mm marked interval.
- Confirm protection and any outdoor-use configuration. Confirm warranty and powered run length before ordering.
- 3000K, 4000K and 6000K are separate white-light specifications, not three switchable temperatures on one strip.
