Outdoor LED Strip Lights
2835-100D Leadless Strip · 10 cm Cut
2835-100D-10CMCatalogue 01 / 19

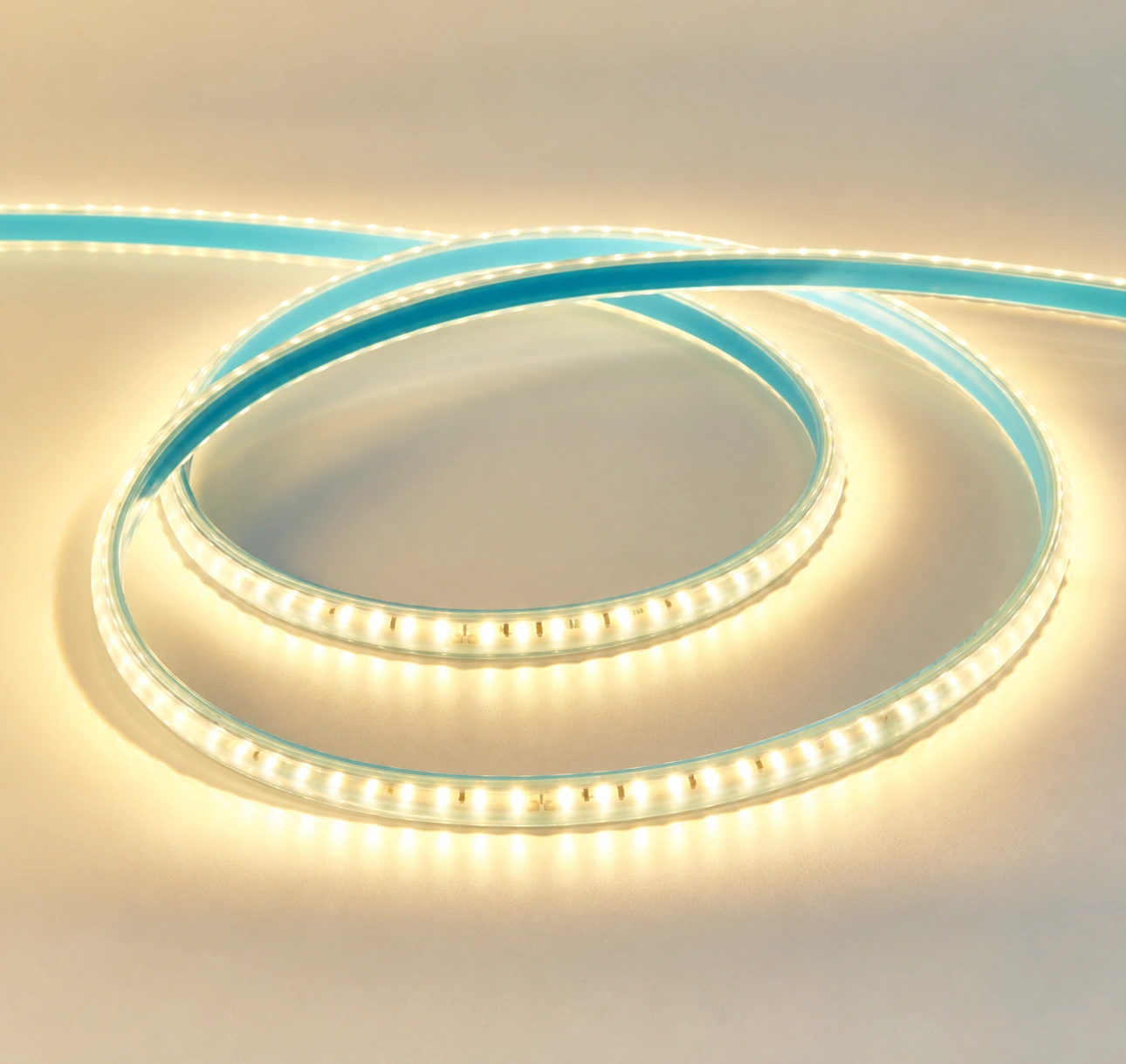

Clear encapsulated 2835 strip with 220V input, 9.5 W/m and a 10 cm cutting interval. Choose 3000K, 4000K, 6500K or Golden Yellow.

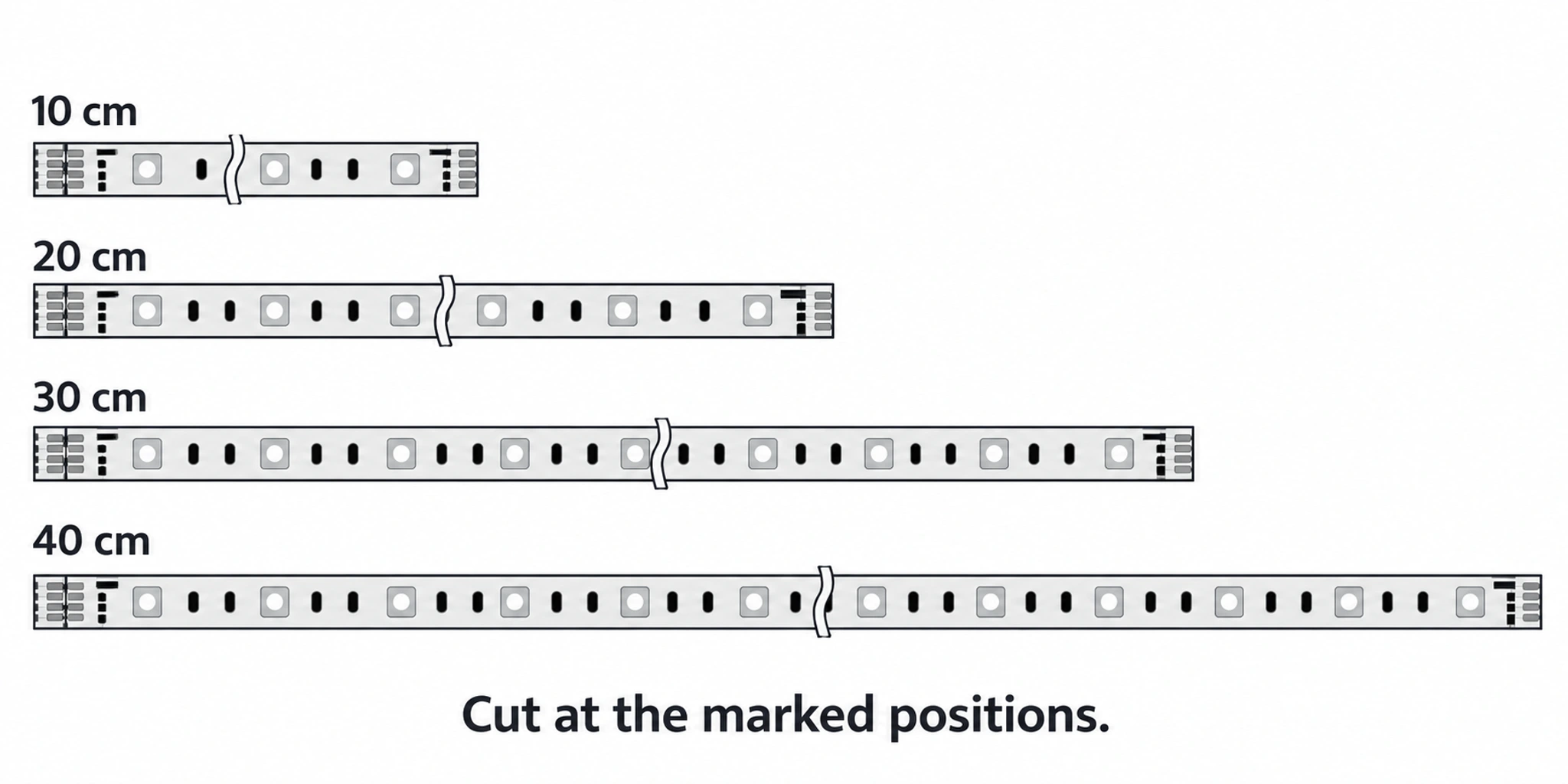

Cutting & lighting
Cut to the specified interval.
20 / 30 / 40 cm are separately illustrated series options; confirm their matching models. Cut at designated positions and seal the ends.
Technical specifications
Specifications at a glance.
Compare model, voltage, light colour and protection for your project.
| Model | 2835-100D-10CM |
|---|---|
| LED Type | SMD 2835 |
| Voltage Options | 220V |
| Power | 9.5 W/m |
| IP Rating | IP65 |
| LED Count | 100D; reference length to be confirmed |
| Cutting Interval | 10 cm |
| Carton Dimensions | 33 × 33 × 24 cm |
For outdoor installation, confirm the power supply, end sealing and protection configuration for the site.
This model uses a 10 cm cut. The series also illustrates 20 / 30 / 40 cm intervals; confirm each matching model. Confirm strip width for the selected configuration.
Confirm light-output data for your selected color and configuration.
Application inspiration
Light that follows architecture.
Explore eaves, facades and architectural outlines, then match the strip, installation, power and protection to the environment.
AI-restored catalogue imagery for inspiration, not an installation claim or protection test for this model. Submerged and high-temperature uses require separate suitability checks.
Selection questions
Before you specify this strip.
Which voltage versions are available for this strip?
This model lists 220V. Multiple voltages mean separate versions, not a universal input range. Confirm the selected version and power requirements when ordering.
How should I confirm cutting intervals and installation lengths?
This model's cutting interval: 10 cm. Follow its designated cut marks; do not assume unrestricted cutting from another series. Confirm supply-roll and powered-run lengths separately.
Does IP65 mean the strip suits every outdoor environment?
This model is labelled IP65. Confirm the location, end sealing, connections and power arrangement. The rating does not specify immersion depth or duration, operating temperature or chemical resistance.
