Outdoor LED Strip Lights

2835-180D Diagonal Triple-Row Strip · 12 mm

2835-180D-12MMCatalogue 10 / 19

A 12 mm diagonal triple-row strip with conductors, 220V input and IP65 encapsulation. Choose three white-light options; confirm the reference length for its stated power.

2835-180D Diagonal Triple-Row Strip · 12 mm
Product appearance · AI-cleaned imageClick to enlarge

Product profile

SMD Single-Color Strip

2835-180D-12MM

For outdoor installation, confirm the power supply, end sealing and protection configuration for the site.

The stated power is 12 W without a reference length; do not calculate it as 12 W/m.

Technical specifications

Specifications at a glance.

Compare model, voltage, light colour and protection for your project.

2835-180D Diagonal Triple-Row Strip · 12 mm
Model2835-180D-12MM
LED TypeSMD 2835
Voltage Options220V
Power12 W
IP RatingIP65
LED Count180D; reference length to be confirmed
Nominal Model Width12 mm
Flux per LED24–26 lm/LED
Carton Dimensions33 × 33 × 28 cm

For outdoor installation, confirm the power supply, end sealing and protection configuration for the site.

The stated power is 12 W without a reference length; do not calculate it as 12 W/m.

Per-LED flux is not finished-strip output per meter; the LED count does not specify a reference length.

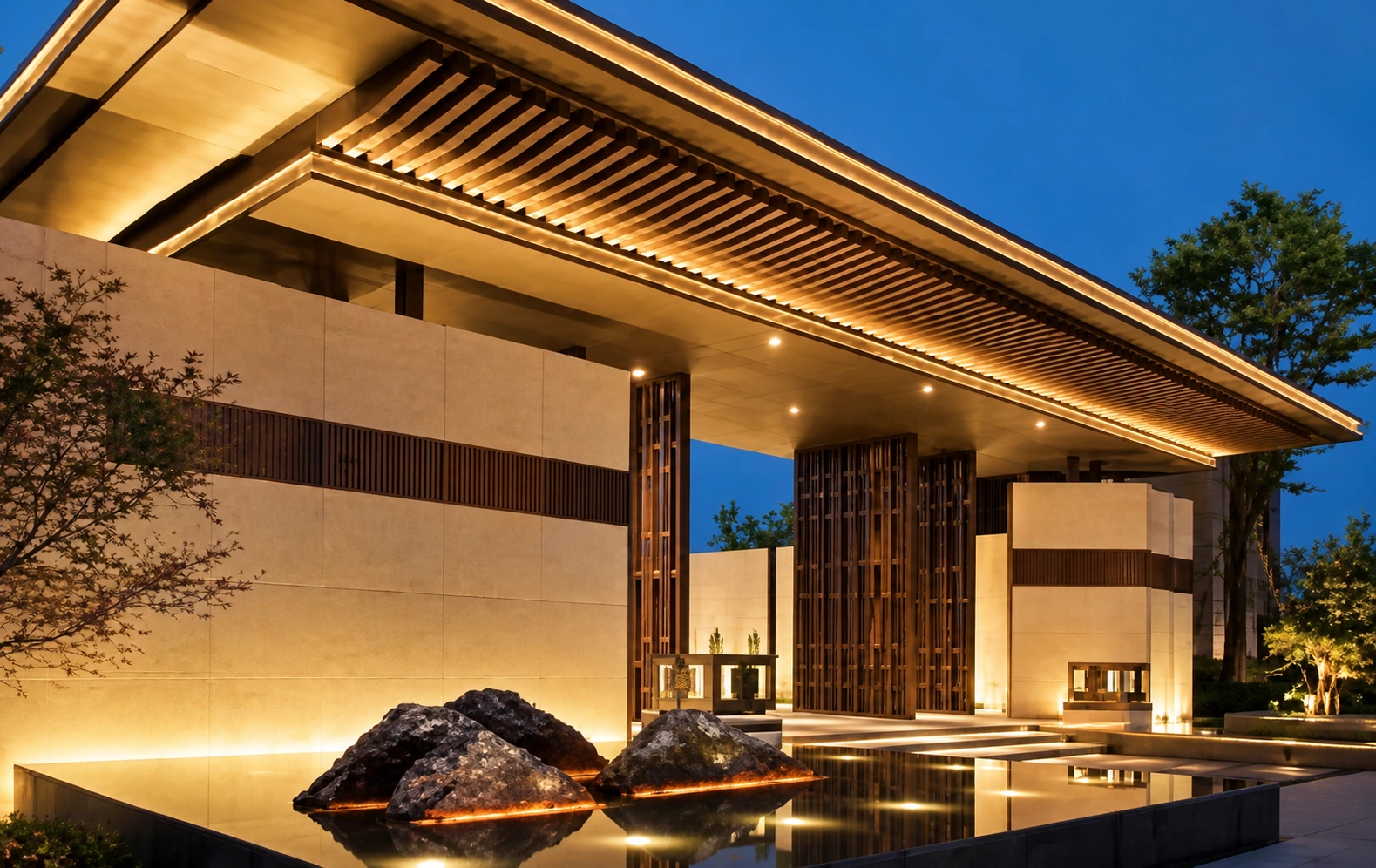

Architectural eaves and facade linear-lighting inspiration

Application inspiration

Light that follows architecture.

Explore eaves, facades and architectural outlines, then match the strip, installation, power and protection to the environment.

AI-restored catalogue imagery for inspiration, not an installation claim or protection test for this model. Submerged and high-temperature uses require separate suitability checks.

Selection questions

Before you specify this strip.

Which voltage versions are available for this strip?

This model lists 220V. Multiple voltages mean separate versions, not a universal input range. Confirm the selected version and power requirements when ordering.

How should I confirm cutting intervals and installation lengths?

Confirm this model's cutting interval for the selected version. Follow its designated cut marks; do not assume unrestricted cutting from another series. Confirm supply-roll and powered-run lengths separately.

Does IP65 mean the strip suits every outdoor environment?

This model is labelled IP65. Confirm the location, end sealing, connections and power arrangement. The rating does not specify immersion depth or duration, operating temperature or chemical resistance.
