2025 280 LEDs
SMD 2025 with 280 LEDs/m on a 8 mm PCB. Select the construction to suit the installation space.
SMD LED strip collection中文 ↗
SMD LED STRIP / SMD-022
SMD 20258 mm · 280 LEDs/m · Single-color
8 mm SMD 2025 Single-color LED Strip · 280 LEDs/m · 10 W/m. 2025 280 LEDs version. Specify the PCB, power supply and light color for linear decorative and indirect lighting projects.
- Input voltage
- DC 24V
- Rated power
- 10 W/m
- LED density
- 280 LEDs/m
- PCB width
- 8 mm
- Color rendering
- CRI 80+
PRODUCT OVERVIEW
Get to know this strip.
Cut and connect at the marks
Follow the actual marks for the selected voltage version. Confirm the cutting interval and connection method for that version.
Compatible dimming controls
Adjust brightness with compatible supplies and controls. Confirm the control protocol and dimming method for the actual configuration.
TECHNICAL SPECIFICATIONS
Start with the specifications.
Check the power supply, controller and installation space against the selected specification. Confirm each configuration separately.
Before ordering
Each voltage version requires its matching supply. Confirm feed length, cutting interval, light color and protective finish before ordering.
| Internal reference | SMD-022 |
|---|---|
| Product version | 2025 280 LEDs |
| Input voltage | DC 24V |
| LED package | SMD 2025 |
| LED density | 280 LEDs/m |
| PCB width | 8 mm |
| Rated power | 10 W/m |
| Type / function | Single-color |
| PCB construction | 1835 copper / double-sided laminated PCB |
| Color rendering | CRI 80+ |
| Cutting | Cut at designated marks; confirm interval by voltage version |
APPLICATION REFERENCE
Bring light into the space.

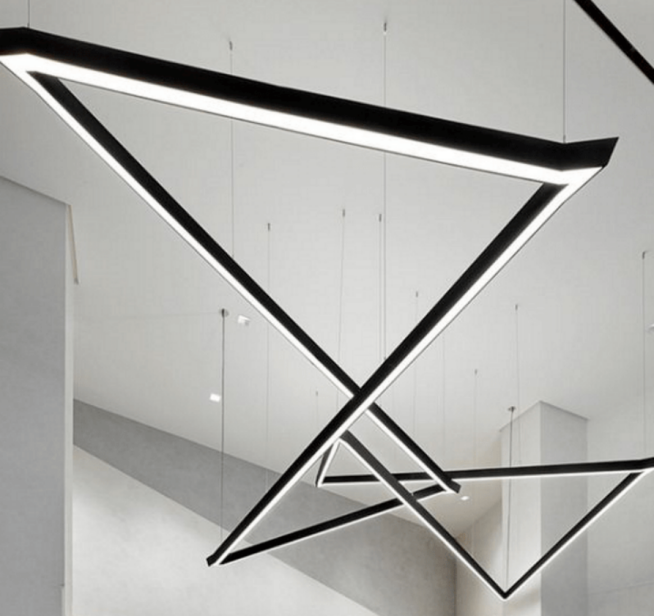

The application image illustrates a lighting concept. It is not evidence of measured brightness, color or installation results for this model.
Application illustration · Not a measured result for this model
Actual results depend on the selected specification, installation, protective finish and controls.
LET’S PLAN YOUR LIGHTING
Specify the right strip for your project.
Share the required configuration, environment and quantity to confirm the specification and quotation.
