Externally controlled chasing
SMD 2835 with 120 LEDs/m on a 10 mm PCB. Select the construction to suit the installation space.
SMD LED strip collection中文 ↗
SMD LED STRIP / SMD-024
SMD 283510 mm · 120 LEDs/m · Externally controlled chasing
10 mm SMD 2835 Externally controlled chasing LED Strip · 120 LEDs/m · 12 W/m. Externally controlled chasing version. Specify the PCB, power supply and light color for linear decorative and indirect lighting projects.
- Input voltage
- DC 24V
- Rated power
- 12 W/m
- LED density
- 120 LEDs/m
- PCB width
- 10 mm
PRODUCT OVERVIEW
Get to know this strip.
Cut and connect at the marks
Follow the actual marks for the selected voltage version. Confirm the cutting interval and connection method for that version.
Compatible dimming controls
Adjust brightness with compatible supplies and controls. Confirm the control protocol and dimming method for the actual configuration.
TECHNICAL SPECIFICATIONS
Start with the specifications.
Check the power supply, controller and installation space against the selected specification. Confirm each configuration separately.
Before ordering
Each voltage version requires its matching supply. Confirm feed length, cutting interval, light color and protective finish before ordering.
| Internal reference | SMD-024 |
|---|---|
| Product version | Externally controlled chasing |
| Input voltage | DC 24V |
| LED package | SMD 2835 |
| LED density | 120 LEDs/m |
| PCB width | 10 mm |
| Rated power | 12 W/m |
| Type / function | Externally controlled chasing |
| PCB construction | 2525 copper / double-sided plated PCB |
| Cutting | Cut at designated marks; confirm interval by voltage version |
PROTECTION OPTIONS
Protection for your environment.
These are optional protection versions. The product photograph alone does not establish the protection rating.
Clear silicone sleeve
Hollow silicone extrusion
Solid silicone extrusion
Protection depends on the selected version and correctly assembled end connections. Confirm the environment and installation requirements before ordering.
APPLICATION REFERENCE
Bring light into the space.

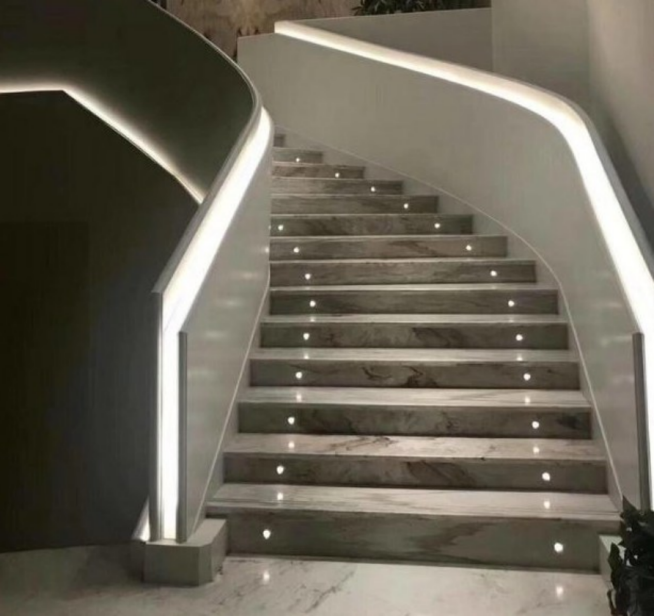

The application image illustrates a lighting concept. It is not evidence of measured brightness, color or installation results for this model.
Application illustration · Not a measured result for this model
Actual results depend on the selected specification, installation, protective finish and controls.
LET’S PLAN YOUR LIGHTING
Specify the right strip for your project.
Share the required configuration, environment and quantity to confirm the specification and quotation.
