SMD 2835 with 60 LEDs/m on a 8 mm PCB. Select the construction to suit the installation space.
SMD LED strip collection中文 ↗
SMD LED STRIP / SMD-001
SMD 28358 mm · 60 LEDs/m · Single-color
8 mm SMD 2835 Single-color LED Strip · 60 LEDs/m · 6 W/m. Standard version. Specify the PCB, power supply and light color for linear decorative and indirect lighting projects.
- Input voltage
- DC 12V / 24V
- Rated power
- 6 W/m
- LED density
- 60 LEDs/m
- PCB width
- 8 mm
- Color rendering
- CRI 80+
- Warranty
- 3 years, subject to warranty terms
PRODUCT OVERVIEW
Get to know this strip.
Cut and connect at the marks
Follow the actual marks for the selected voltage version. Confirm the cutting interval and connection method for that version.
Compatible dimming controls
Adjust brightness with compatible supplies and controls. Confirm the control protocol and dimming method for the actual configuration.
TECHNICAL SPECIFICATIONS
Start with the specifications.
Check the power supply, controller and installation space against the selected specification. Confirm each configuration separately.
Before ordering
Each voltage version requires its matching supply. Confirm feed length, cutting interval, light color and protective finish before ordering.
| Internal reference | SMD-001 |
|---|---|
| Product version | Standard |
| Input voltage | DC 12V / 24V |
| LED package | SMD 2835 |
| LED density | 60 LEDs/m |
| PCB width | 8 mm |
| Rated power | 6 W/m |
| Type / function | Single-color |
| PCB construction | 2525 copper / double-sided plated PCB |
| Color rendering | CRI 80+ |
| Warranty | 3 years, subject to warranty terms |
| Cutting | Cut at designated marks; confirm interval by voltage version |
PROTECTION OPTIONS
Protection for your environment.
These are optional protection versions. The product photograph alone does not establish the protection rating.
Clear silicone sleeve
Hollow silicone extrusion
Solid silicone extrusion
Protection depends on the selected version and correctly assembled end connections. Confirm the environment and installation requirements before ordering.
APPLICATION REFERENCE
Bring light into the space.

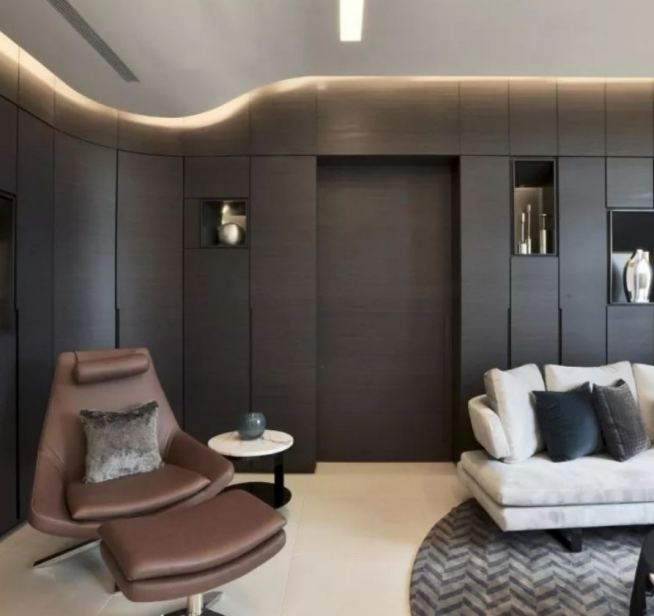

The application image illustrates a lighting concept. It is not evidence of measured brightness, color or installation results for this model.
Application illustration · Not a measured result for this model
Actual results depend on the selected specification, installation, protective finish and controls.
