COB LED STRIP / COB-012
12V 5 mm Tunable White COB LED Strip
480D two-wire · 6+6W version
12V tunable white COB LED strip, 480D two-wire · 6+6W version, with a 5 mm PCB and 10 mm cutting interval. Color-temperature specifications: 2700K–6500K. Match the configuration to the installation, supply and controls.
At a glance480D
- Input voltage
- 12V
- PCB width
- 5 mm
- Cutting interval
- 10 mm
- Color rendering
- CRI >90
5 mm PCB
Check the installation space against the 5 mm PCB. 480D two-wire · 6+6W version.
10 mm cutting interval
Cut at this model's designated markings and match the connectors and controls to the selected configuration.
Tunable White
Color-temperature specifications: 2700K–6500K, with CRI >90. Confirm the light color and control method for the selected version.
LIGHT & CONTROL
Choose your configuration
Combined light channels require compatible wiring and controls.

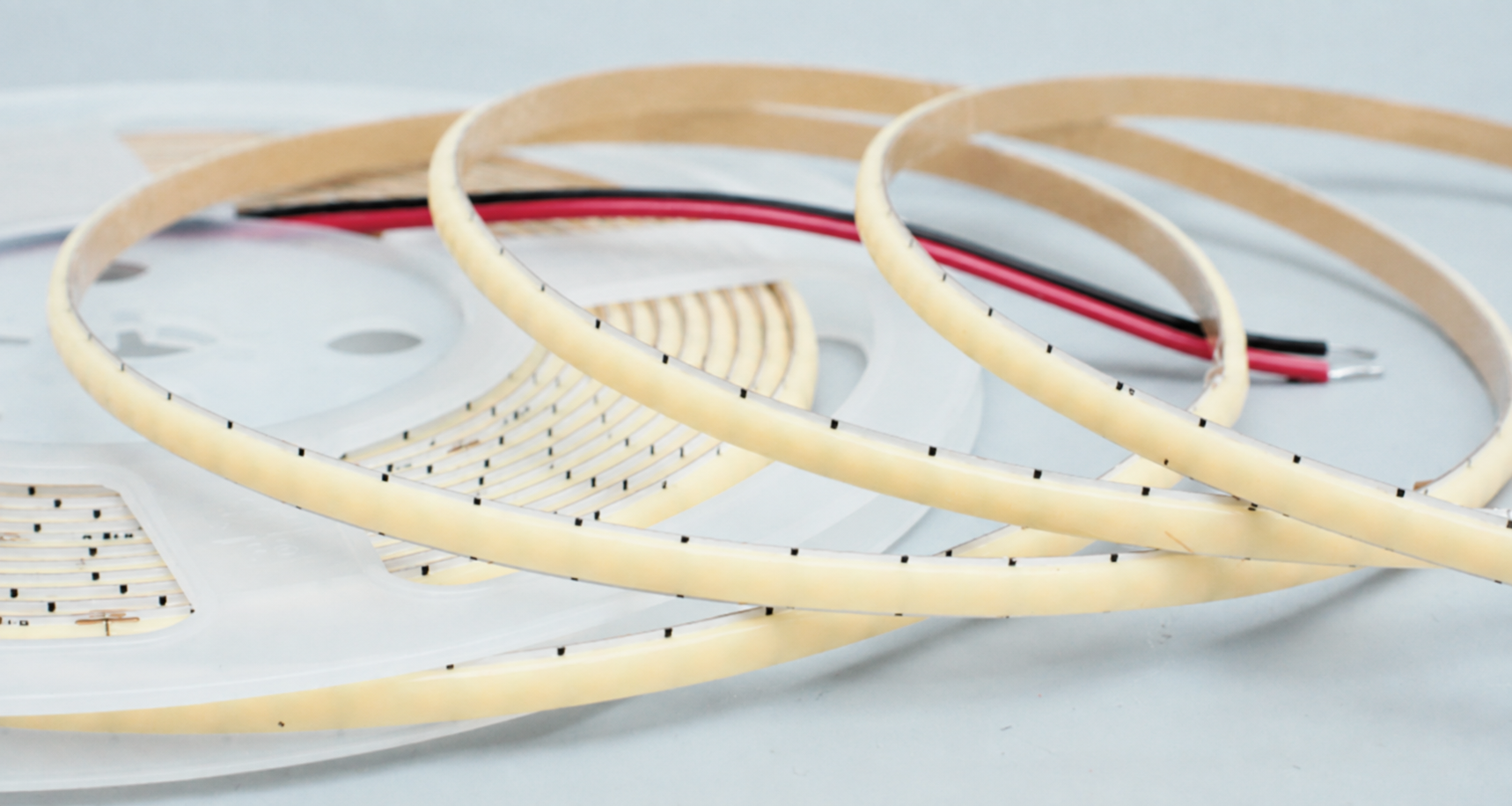

Selected configuration12V · CCT · 2700K–6500KYour selection identifies the enquiry configuration; the photograph is not recolored.
SIZE & CUTTING
5 mm PCB
10 mm cutting interval
This model uses 1 cm cutting sections. Follow the actual cutting marks and allow space for the PCB and connections.
Cutting relationship only · Not a scaled engineering drawing. Refer to the product for pads and wiring.
TECHNICAL SPECIFICATIONS
Model specifications
480D two-wire · 6+6W version
Power and chip count retain their stated values. Confirm their reference length before calculating supplies or comparing models.
| Internal reference | COB-012 |
|---|---|
| Product version | 480D two-wire · 6+6W version |
| Input voltage | 12V |
| Input supply type | AC/DC and the matching supply system to confirmConfirm before ordering |
| Light color / control type | Tunable White |
| PCB width | 5 mm |
| Cutting interval | 10 mm |
| Stated power (source value) | 6 +6W · reference length to confirmConfirm before ordering |
| Chip count (source value) | 480PCS · reference length to confirmConfirm before ordering |
| Color rendering index | CRI >90 |
| Color temperatures | 2700K–6500K |
| Wire count | 2 wires |
BEFORE YOU ORDER
Selection & ordering
- The stated 6 +6W power and 480PCS chip count have no reference length. Confirm the basis before ordering; do not treat them as per-metre values.
- Voltage specification: 12V. Confirm AC/DC input, wiring and compatible supply and controls. Cut at this model's 10 mm marked interval.
- Confirm protection and any outdoor-use configuration. Confirm warranty and powered run length before ordering.
- This is the two-wire 6+6W version. Select it separately from the same-name version with different stated power, and include the reference and power in your enquiry.
