COB LED STRIP / COB-013

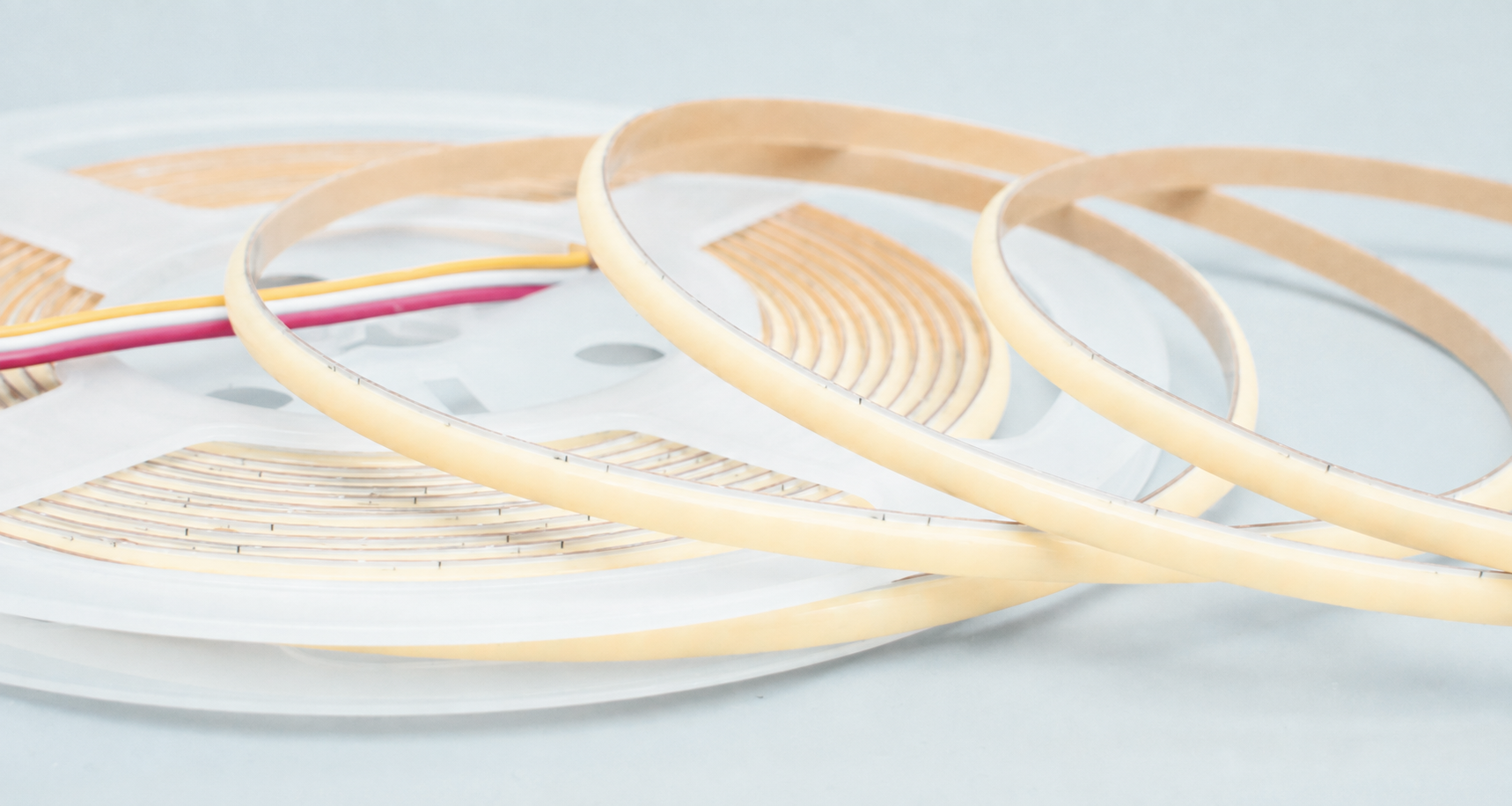

24V 5 mm Tunable White COB LED Strip
576D three-wire tunable white
24V tunable white COB LED strip, 576D three-wire tunable white, with a 5 mm PCB and 28 mm cutting interval. Color-temperature specifications: 2700K–6500K. Match the configuration to the installation, supply and controls.
At a glance576D
- Input voltage
- 24V
- PCB width
- 5 mm
- Cutting interval
- 28 mm
- Color rendering
- CRI >90
5 mm PCB
Check the installation space against the 5 mm PCB. 576D three-wire tunable white.
28 mm cutting interval
Cut at this model's designated markings and match the connectors and controls to the selected configuration.
Tunable White
Color-temperature specifications: 2700K–6500K, with CRI >90. Confirm the light color and control method for the selected version.
LIGHT & CONTROL
Choose your configuration
Combined light channels require compatible wiring and controls.
Selected configuration24V · CCT · 2700K–6500KYour selection identifies the enquiry configuration; the photograph is not recolored.
SIZE & CUTTING
5 mm PCB
28 mm cutting interval
This model uses 2.8 cm cutting sections. Follow the actual cutting marks and allow space for the PCB and connections.
Cutting relationship only · Not a scaled engineering drawing. Refer to the product for pads and wiring.
TECHNICAL SPECIFICATIONS
Model specifications
576D three-wire tunable white
Power and chip count retain their stated values. Confirm their reference length before calculating supplies or comparing models.
| Internal reference | COB-013 |
|---|---|
| Product version | 576D three-wire tunable white |
| Input voltage | 24V |
| Input supply type | AC/DC and the matching supply system to confirmConfirm before ordering |
| Light color / control type | Tunable White |
| PCB width | 5 mm |
| Cutting interval | 28 mm |
| Stated power (source value) | 6+6W · reference length to confirmConfirm before ordering |
| Chip count (source value) | 576PCS · reference length to confirmConfirm before ordering |
| Color rendering index | CRI >90 |
| Color temperatures | 2700K–6500K |
| Wire count | 3 wires |
BEFORE YOU ORDER
Selection & ordering
- The stated 6+6W power and 576PCS chip count have no reference length. Confirm the basis before ordering; do not treat them as per-metre values.
- Voltage specification: 24V. Confirm AC/DC input, wiring and compatible supply and controls. Cut at this model's 28 mm marked interval.
- Confirm protection and any outdoor-use configuration. Confirm warranty and powered run length before ordering.
