3535 copper PI high CRI
SMD 2835 with 120 LEDs/m on a 8 mm PCB. Select the construction to suit the installation space.
SMD LED strip collection中文 ↗
SMD LED STRIP / SMD-035
SMD 28358 mm · 120 LEDs/m · Single-color
8 mm SMD 2835 Single-color LED Strip · 120 LEDs/m. 3535 copper PI high CRI version. Specify the PCB, power supply and light color for linear decorative and indirect lighting projects.
- Input voltage
- 12V / 24V
- LED density
- 120 LEDs/m
- PCB width
- 8 mm
- Color rendering
- CRI 90+
PRODUCT OVERVIEW
Get to know this strip.
Cut and connect at the marks
Follow the actual marks for the selected voltage version. Confirm the cutting interval and connection method for that version.
Compatible dimming controls
Adjust brightness with compatible supplies and controls. Confirm the control protocol and dimming method for the actual configuration.
TECHNICAL SPECIFICATIONS
Start with the specifications.
Check the power supply, controller and installation space against the selected specification. Confirm each configuration separately.
Before ordering
Pending confirmation: rated power. Each voltage version requires its matching supply. Confirm feed length, cutting interval, light color and protective finish before ordering.
| Internal reference | SMD-035 |
|---|---|
| Product version | 3535 copper PI high CRI |
| Input voltage | 12V / 24V |
| LED package | SMD 2835 |
| LED density | 120 LEDs/m |
| PCB width | 8 mm |
| Type / function | Single-color |
| PCB construction | 3535 copper / PI / double-sided PCB |
| Color rendering | CRI 90+ |
| Color temperatures | 2200K / 2400K / 2700K / 3000K / 3500K / 4000K / 5000K / 6500K / 12000K |
| Cutting | Cut at designated marks; confirm interval by voltage version |
APPLICATION REFERENCE
Bring light into the space.

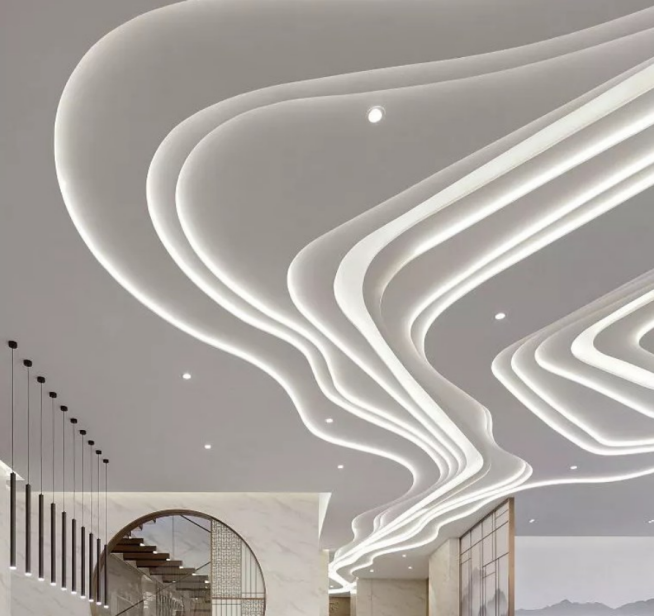

The application image illustrates a lighting concept. It is not evidence of measured brightness, color or installation results for this model.
Application illustration · Not a measured result for this model
Actual results depend on the selected specification, installation, protective finish and controls.
LET’S PLAN YOUR LIGHTING
Specify the right strip for your project.
Share the required configuration, environment and quantity to confirm the specification and quotation.
