Narrow 2525 copper PCB
SMD 2835 with 120 LEDs/m. Select the construction to suit the installation space.
SMD LED strip collection中文 ↗
SMD LED STRIP / SMD-007
SMD 2835120 LEDs/m · Single-color
SMD 2835 Single-color LED Strip · 120 LEDs/m · 10 W/m. Narrow 2525 copper PCB version. Specify the PCB, power supply and light color for linear decorative and indirect lighting projects.
- Input voltage
- DC 12V / 24V
- Rated power
- 10 W/m
- LED density
- 120 LEDs/m
- Color rendering
- CRI 75+
- Warranty
- 3 years, subject to warranty terms
PRODUCT OVERVIEW
Get to know this strip.
Cut and connect at the marks
Follow the actual marks for the selected voltage version. Confirm the cutting interval and connection method for that version.
Match the supply and controls
Select compatible equipment for voltage, light color and power. Confirm the control configuration separately for each version.
TECHNICAL SPECIFICATIONS
Start with the specifications.
Check the power supply, controller and installation space against the selected specification. Confirm each configuration separately.
Before ordering
Pending confirmation: PCB width. Each voltage version requires its matching supply. Confirm feed length, cutting interval, light color and protective finish before ordering.
| Internal reference | SMD-007 |
|---|---|
| Product version | Narrow 2525 copper PCB |
| Input voltage | DC 12V / 24V |
| LED package | SMD 2835 |
| LED density | 120 LEDs/m |
| Rated power | 10 W/m |
| Type / function | Single-color |
| PCB construction | 2525 copper / double-sided plated PCB |
| Color rendering | CRI 75+ |
| Warranty | 3 years, subject to warranty terms |
| Color temperatures | 2200K / 2400K / 2700K / 3000K / 3500K / 4000K / 5000K / 6500K / 12000K |
| Cutting | Cut at designated marks; confirm interval by voltage version |
APPLICATION REFERENCE
Bring light into the space.

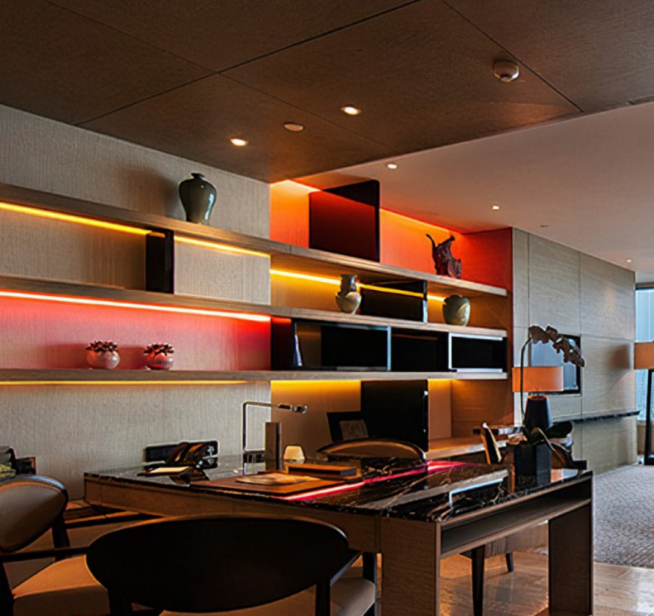

The application image illustrates a lighting concept. It is not evidence of measured brightness, color or installation results for this model.
Application illustration · Not a measured result for this model
Actual results depend on the selected specification, installation, protective finish and controls.
LET’S PLAN YOUR LIGHTING
Specify the right strip for your project.
Share the required configuration, environment and quantity to confirm the specification and quotation.
