COB LED STRIP / COB-016

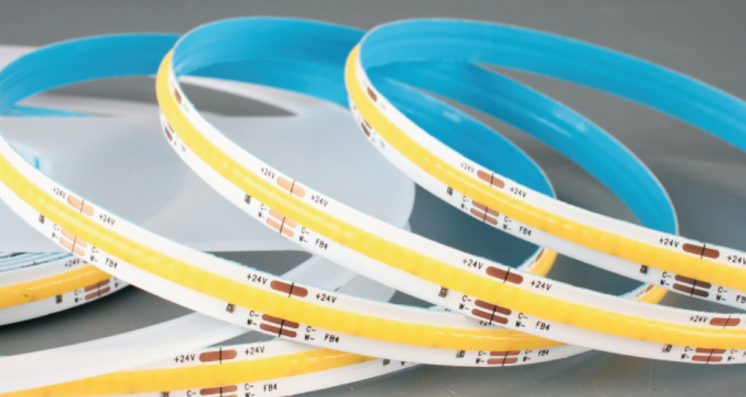

24V 10 mm Tunable White COB LED Strip
624D three-wire long-PCB tunable white
24V tunable white COB LED strip, 624D three-wire long-PCB tunable white, with a 10 mm PCB and 36 mm cutting interval. Color-temperature specifications: 2700K–6500K. Match the configuration to the installation, supply and controls.
At a glance624D
- Input voltage
- 24V
- PCB width
- 10 mm
- Cutting interval
- 36 mm
- Color rendering
- CRI >90
10 mm PCB
Check the installation space against the 10 mm PCB. 624D three-wire long-PCB tunable white.
36 mm cutting interval
Cut at this model's designated markings and match the connectors and controls to the selected configuration.
Tunable White
Color-temperature specifications: 2700K–6500K, with CRI >90. Confirm the light color and control method for the selected version.
LIGHT & CONTROL
Choose your configuration
Combined light channels require compatible wiring and controls.
Selected configuration24V · CCT · 2700K–6500KYour selection identifies the enquiry configuration; the photograph is not recolored.
SIZE & CUTTING
10 mm PCB
36 mm cutting interval
This model uses 3.6 cm cutting sections. Follow the actual cutting marks and allow space for the PCB and connections.
Cutting relationship only · Not a scaled engineering drawing. Refer to the product for pads and wiring.
TECHNICAL SPECIFICATIONS
Model specifications
624D three-wire long-PCB tunable white
Power and chip count retain their stated values. Confirm their reference length before calculating supplies or comparing models.
| Internal reference | COB-016 |
|---|---|
| Product version | 624D three-wire long-PCB tunable white |
| Input voltage | 24V |
| Input supply type | AC/DC and the matching supply system to confirmConfirm before ordering |
| Light color / control type | Tunable White |
| PCB width | 10 mm |
| Cutting interval | 36 mm |
| Stated power (source value) | 9+9W · reference length to confirmConfirm before ordering |
| Chip count (source value) | 624PCS · reference length to confirmConfirm before ordering |
| Color rendering index | CRI >90 |
| Color temperatures | 2700K–6500K |
| Wire count | 3 wires |
BEFORE YOU ORDER
Selection & ordering
- The stated 9+9W power and 624PCS chip count have no reference length. Confirm the basis before ordering; do not treat them as per-metre values.
- Voltage specification: 24V. Confirm AC/DC input, wiring and compatible supply and controls. Cut at this model's 36 mm marked interval.
- Confirm protection and any outdoor-use configuration. Confirm warranty and powered run length before ordering.
